Rugged RTK data collector S60III for field measurements and mapping operations
S60III-Rugged Data Collector
Comprehensive Data collection Terminal with Full Protection
S60III is a brand-new data collector featuring the latest industrial-grade processor from Qualcomm. With its slim form factor and a standard English keyboard, it's specifically designed for field measurements and mapping operations.
The 5.5-inch 500nit display utilizes Gorila Glass, enhancing durability while ofering exceptional sunlight readability. S60III provides various connectivity options, including Bluetooth 5.0, dual-band 2.4G and 5G W-Fi, and a 4G modem supporting global networks, ensuring seamless and reliable connectivity with your preferred GNSS receivers and RTK network correclion sources. The built-in 9000mAh battery provides long-lasting performance. Designed for extreme durability, it can with stand drops from heights of up to 1.5 meters and complies with stringent lP68 standards S60III excels in challenging environments, making data collection tasks easier and more efficient.
Leading Industry Data Collection Terminal
Powered by Android 12 OS with GMS Certification

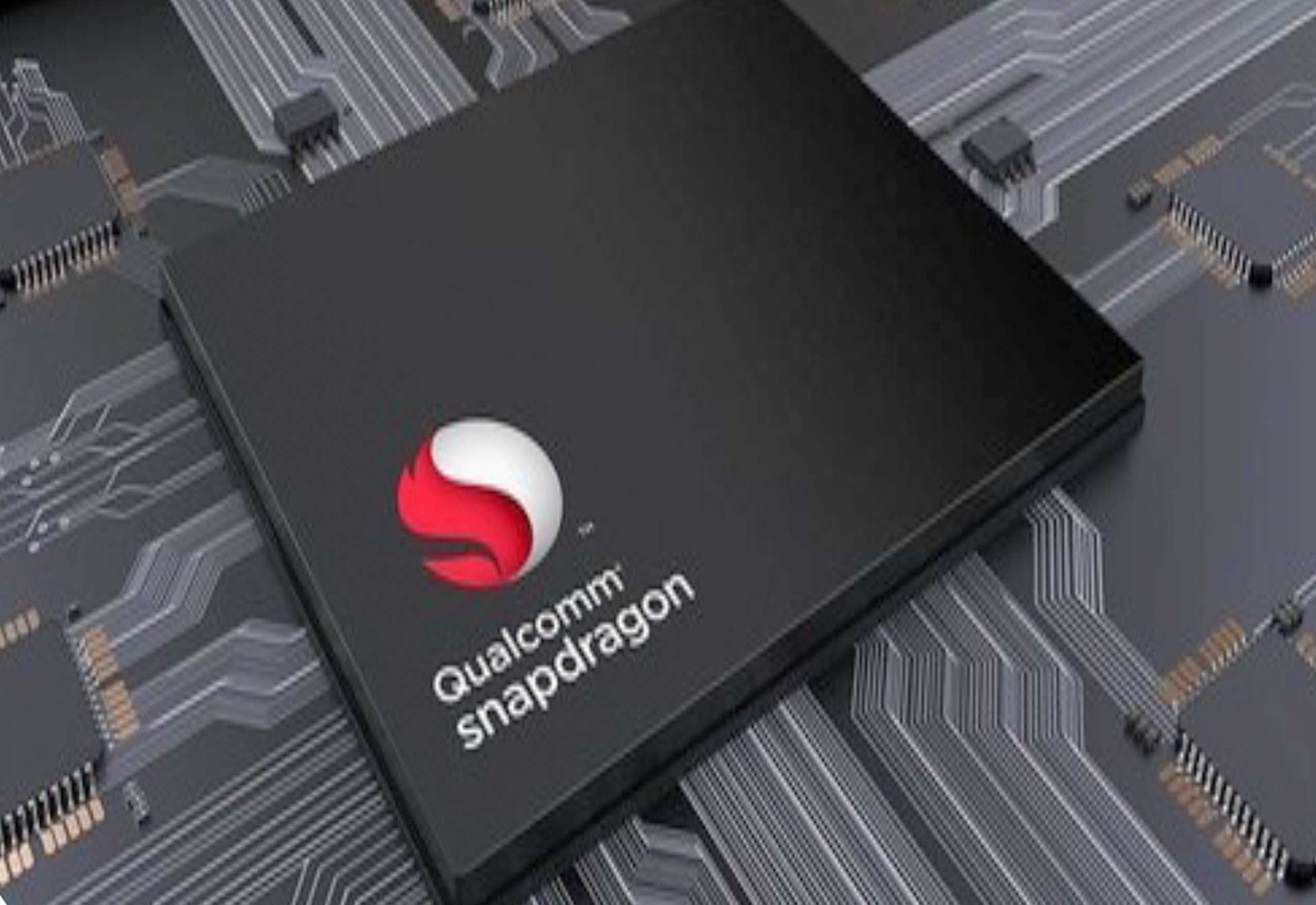

The S60III is equipped with the Qualcomm 662 processor, designed with an 11nm fabrication process,providing powerful performance forsmooth CAD drawing management and base map display, greatly enhancing productivity. Dual-band Wi-Fi and 4G support ensure stable and reliable internet connectivity, while the physical USB 3.0 interface allows for faster data transfer, enabling instant uploads of large project files. The 5.5-inch 1080P resolution industrial display with 500 nits brightness enhances outdoor data collection visibility even in sunlight.
Designed for complex mobile office scenarios

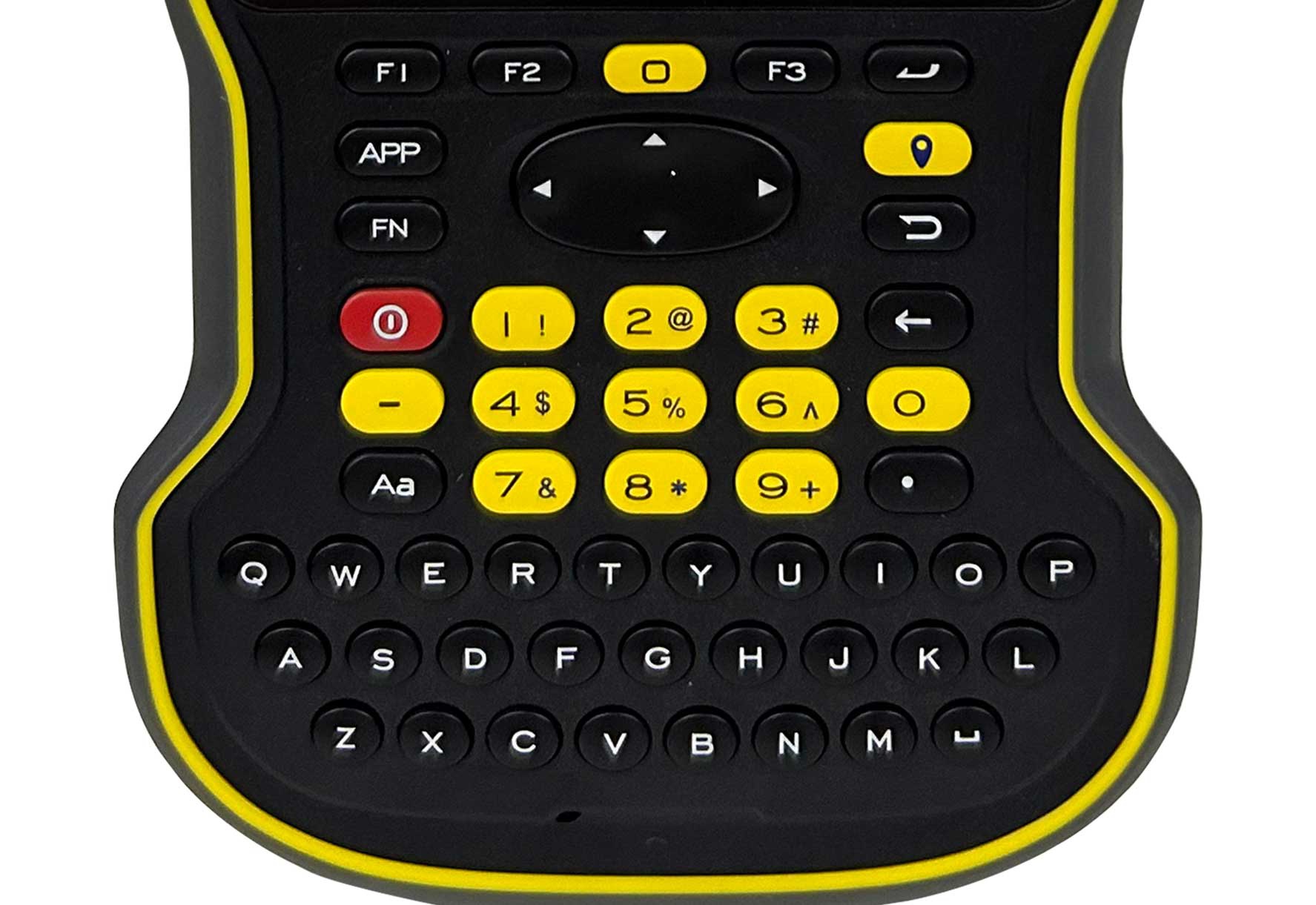

Innovative keypad design aimed at providing an exceptional user experience
The S60III features a popular slim and lightweight design, yet it comes equipped with a high-capacity 9000mAh battery, weighing just a light 420 grams. Additionally, we've incorporated a scratch-resistant and durable Corning glass screen and designed it with lP68 waterproofing to ensure outstanding protection for your data terminal in harsh environments.The brand-new British-style keyboard design has been optimized, allowing for fast data input without changing user habits. Moreover, without increasing the device's size, we've thoughtfully reserved multiple shortcut buttons to assist you in swiftly completing various operations in industry applications. The large-capacity battery design ensures uninterrupted data collection tasks, making the S60III an efficient handheld terminal for measurement and mapping applications.
Specifications
| System | Operating system | Android 12 GMS support |
| CPU | Qualcomm SDM 662 octa-core 2.0 GHz | |
| RAM | 4 GB SDRAM | |
| Flash memory | 64 GB | |
| Memory card | MicroSDHC up to 128 GB | |
| Physical | Size(L × W × H) | 228 mm x 96 mm x 21 mm |
| Weight | 420 g (14.42 oz) with battery | |
| Environment | Operating: -20°C to +65 °C(-4°F to +149°F) | |
| Storage: -30°C to +70°C(-22°F to +158°F) | ||
| Dust and water proof | IP68 | |
| Humidity | 5%~95% (non-condensing) | |
| Shock and vibration | 1.2 m (4 ft) fall on concrete | |
| Display | 5.5"IPS LTPS LCD capacitive multi-touch 1920 x 1080 pixels HD+ 401 ppi Brightness 500 nit | |
| Keypad | QWERT KEY | |
| Communications | SIM Card Type | Nano-SlM card |
| Network modem | GSM: 850/900/1800/1900 | |
| WCDMA:B1/B2/B4/B5/B8 | ||
| LTE-TDD: B34/B38/B39/B40/B41 | ||
| LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28 | ||
| Wi-Fi | 802.11 a/b/g/n/ac access point mode (2.4 G/5G) | |
| Bluetooth | V5.0 | |
| USB | Type C, OTG supported | |
| NFC | Support | |
| Electrical | Li-ion battery capacity | 9000 mAh |
| Operating time (1) | 22 h | |
| Charging time | 4h(typical) | |
| Sensors and Multimedia | 13 MP rear camera with auto-focus and flash | |
| GNSS (BDS, GPS, GLONASS) | ||
| A-GPS support | ||
| G-sensor | ||
| Gyroscope | ||
| E-compass | ||
| Light sensor | ||
| Speaker | ||
| Microphone | ||
| Standard Accessories | A/C charger | |
| USB cable | ||
| Stylus | ||
| Handstrap | ||
| Field Software | ||
| Certifications | CE, FCC | |
