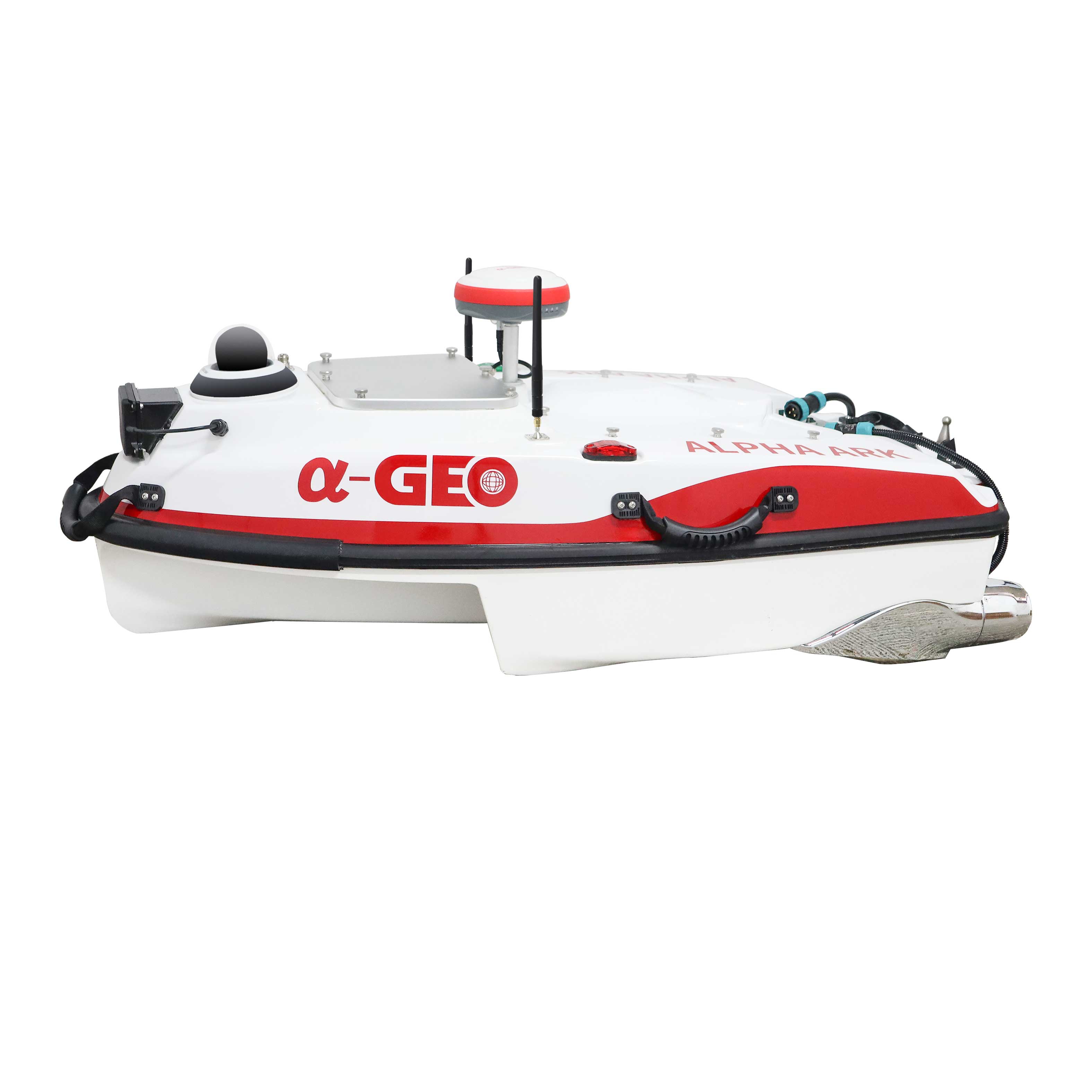

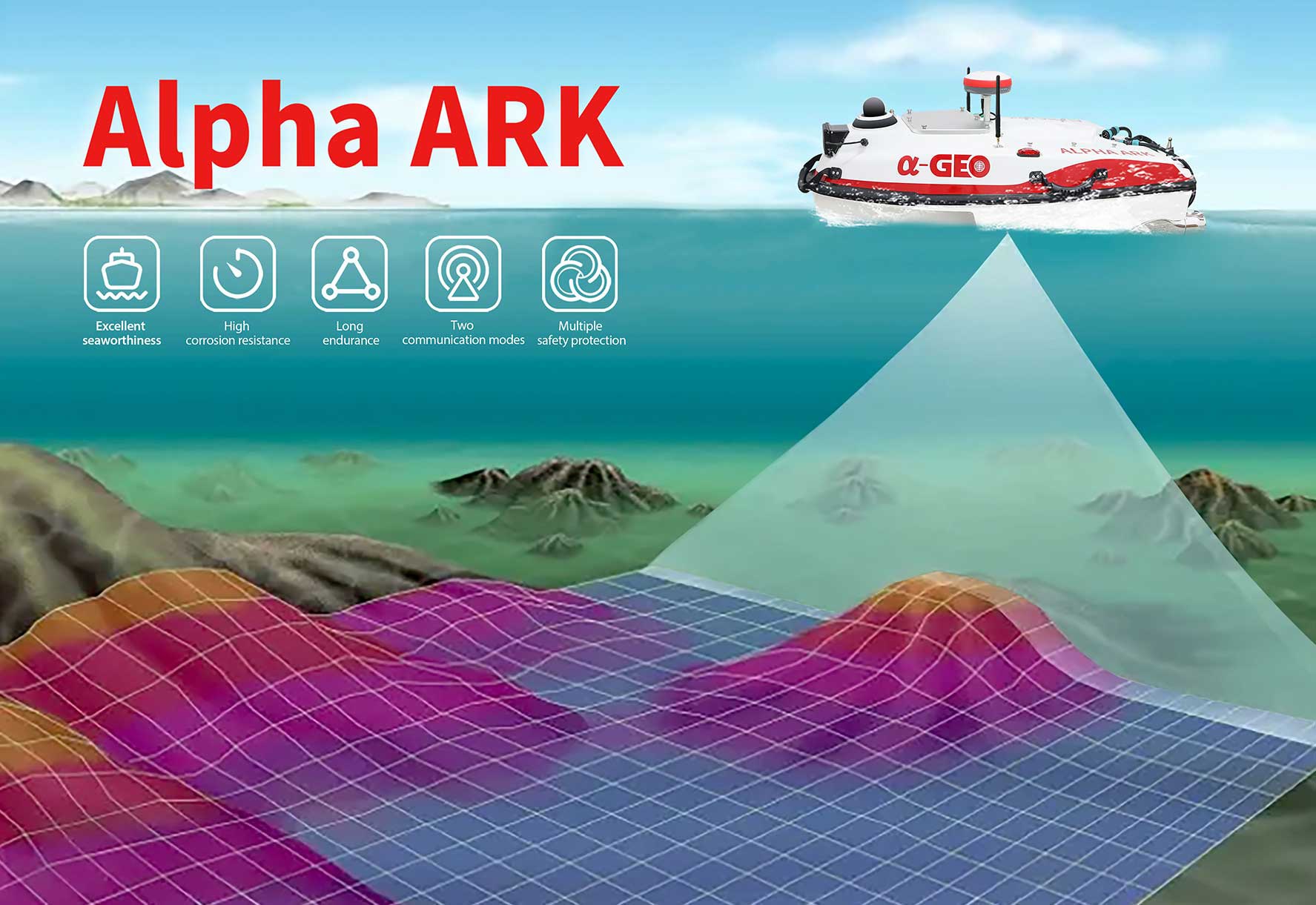

M-type trimaran boat shape USV system Alpha ARK for underwater survey
Alpha ARK is made of Kevlar & carbon fiber composites with a M-type trimaran boat shape which has strong resistance to impact. lts closed-cell foam filling and fully enclosed compartments are anti-sinking and waterproof design. The modular design is easily assemble and disassemble all parts for maintenance. Alpha ARK equip with different sensors to perform a variety of tasks according to demand and easily cope with a variety of complex operating conditions with multiple security protection mechanisms!
Inquire Now
1730701274_SY0x25OAV0.pdf
Product Detail
Great ability against wind and waves & excellent seaworthiness
Alpha ARK experience a trapezoidal-shaped trimaran with great seaworthiness and stable sailing ability. The high-speed air flow enters the channel from the horn and form an air cushion to generate additional lift that reduce the forward resistance to make it easy to accelerate when sailing.
-
Strong resistance to impact & high corrosion resistanceThe hull is made of Kevlar & carbon fiber composite material in acid, alkali and corrosion resistance, which is lighter in weight, strong in impact resistance, good in sealing. Its remarkable hull design is convenient for transmission and reliable placement. -
Powerful battery & long enduranceIts intelligent lithium battery supports for fast charging and discharging, the system is equipped with self-protection function including battery explosion-proof bag and specially waterproof dealing. The powerful battery and low consumption supports 6 hours of endurance under economic condition. -
Two modes of communication & celerity and accuracy in data controlStandard bridge and network communication modes meet the needs of a variety of working conditions, and get rid of transmission distance restrictions. The multi-link ensure stable data transmission to keep accurate data at hand. -
Multiple safety protection mechanisms & safe navigationAlpha ARK monitor the operational status of the USV in real-time by the 360 ° full view camera, no longer need to worry about obstacles encountered during navigation for the ultrasonic obstacles avoidance module can help timely and effectively avoid obstacles, and no longer need to worry about communication loss due to the multiple low-voltage and safe return mechanisms to ensure navigation safety.
Available Instrumentation
APPLICATIONS

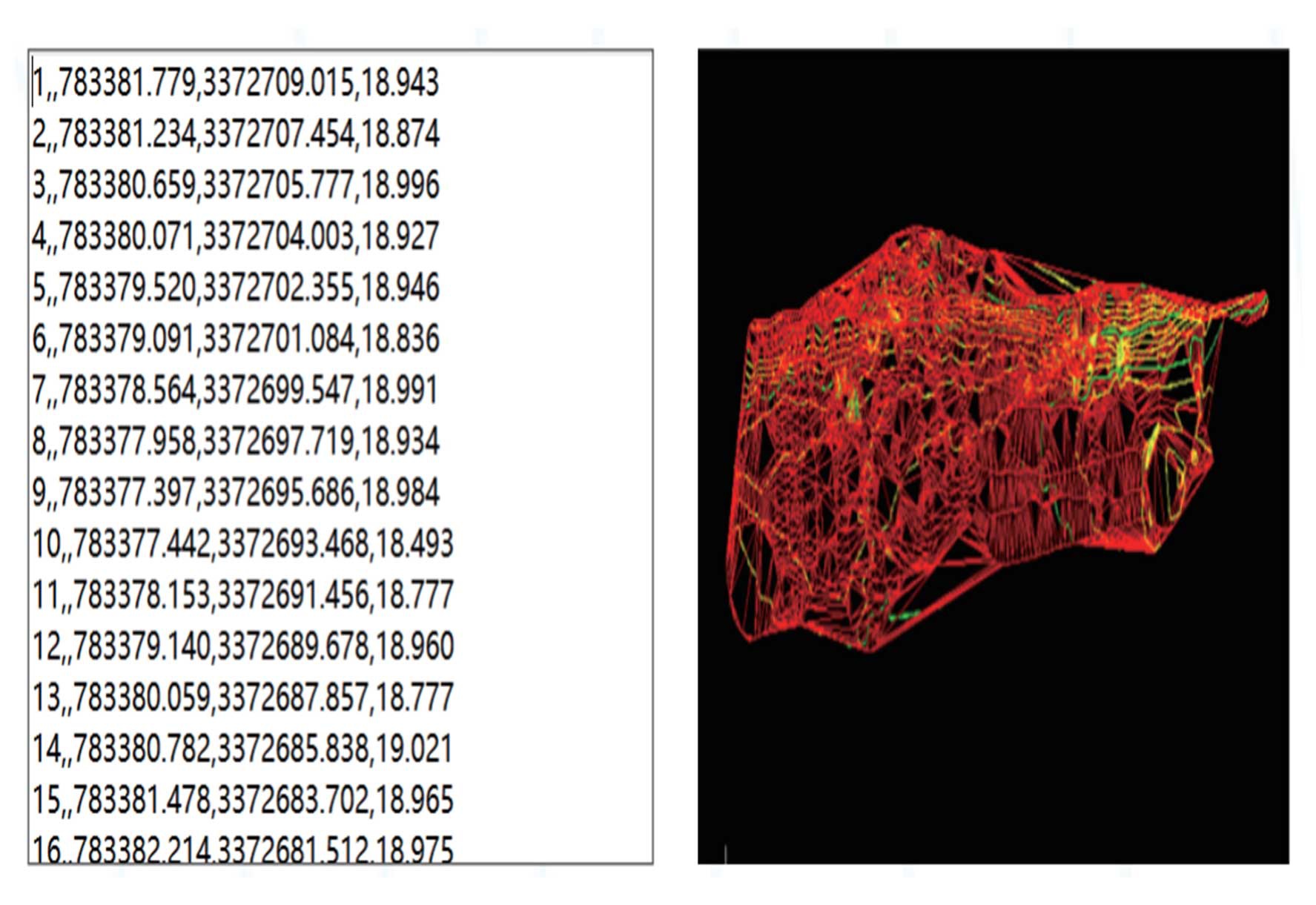

Mapping of underwater topography and geomorphology
Tangxunhu Park is located in Wuhan Economic and Technological Development Zone, our measuring area is 207 meter long and 58 meter wide. The condition is complex due to a large number of collapsed branches and some protrusion reefs on the lake surface. We gather the data and send the relevant instructions from a safe area through shore-based software by taking underwater measurements with Alpha ARK unmanned ship. comparing with the traditional manual measurement method, it take the maximum Limited protection of personnel safety and improve operational mobility and efficiency.
Hidden pipe detection

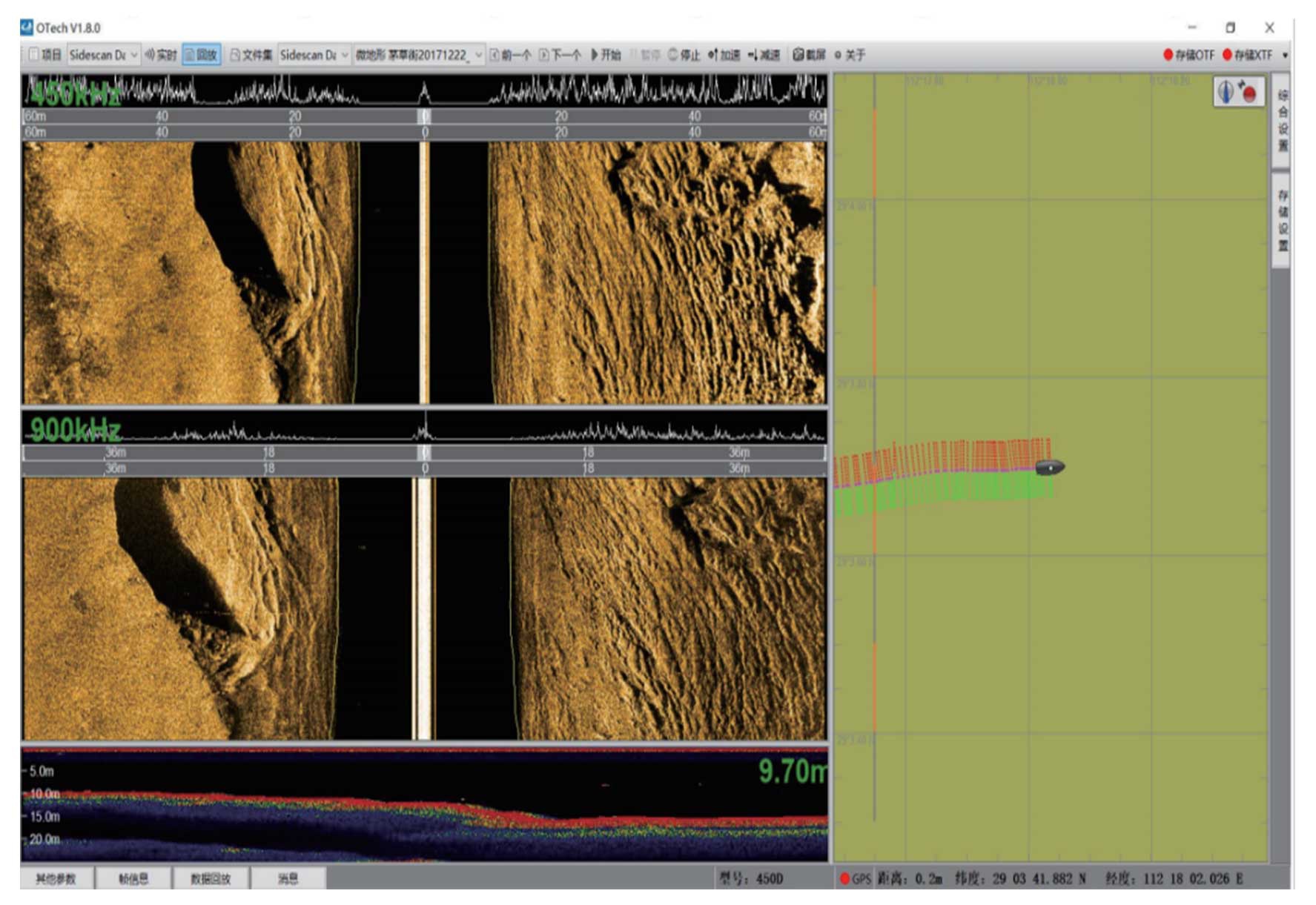

Alpha ARK unmanned ship is equipped with side-scan sonar to imagine the underwater target. Combined with sonar image analysis and judgment,we help law enforcement find out the sewage pip and target polluters and provide strong data support to find out the water pollution source and the pollution area distribution.

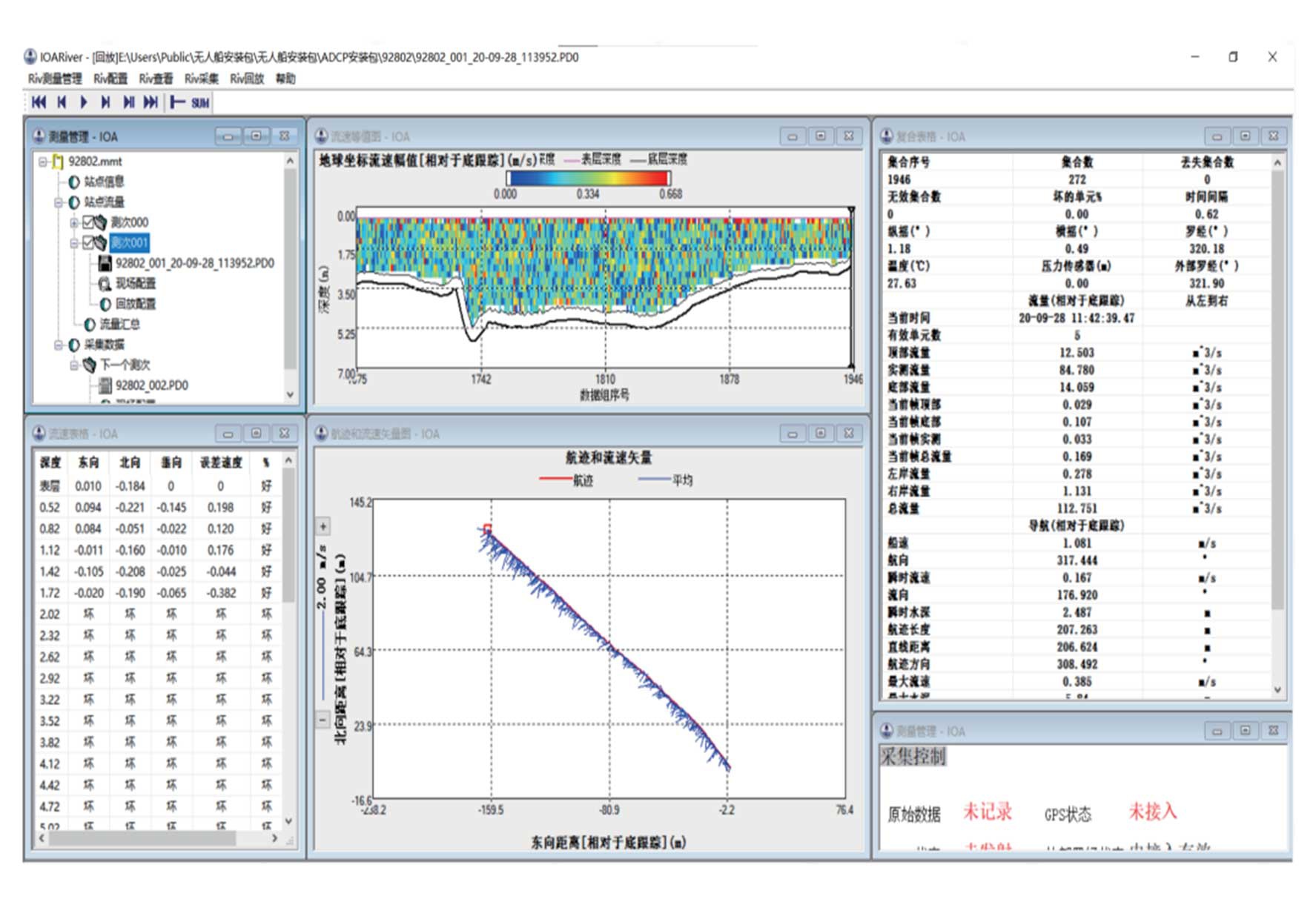

ADCP section velocity measurement
Alpha ARK with the navigable ADCP can transmit data in real time and generate flow rate chart by mobile navigable vertical velocity, measurement of flow rate and section flow rate. It is more safe and efficient than manual measurement, at the same time, it avoid human errors and ensure the accuracy of data.
Specifications
| Physical | Hull dimension (L × W × H) | 1180mm×620mm×345mm |
| Hull material | Kevlar + Carbon fibre material | |
| Hull weight | 15kg | |
| Standard displacement | 25kg | |
| Maximum displacement | 30kg | |
| Anti-wave &wind | 5th wind level and 3rd wave level | |
| Boat shape | M-type trimaran | |
| Navigation lights | A pair of two-color navigation lights | |
| Camera | 360° full view camera | |

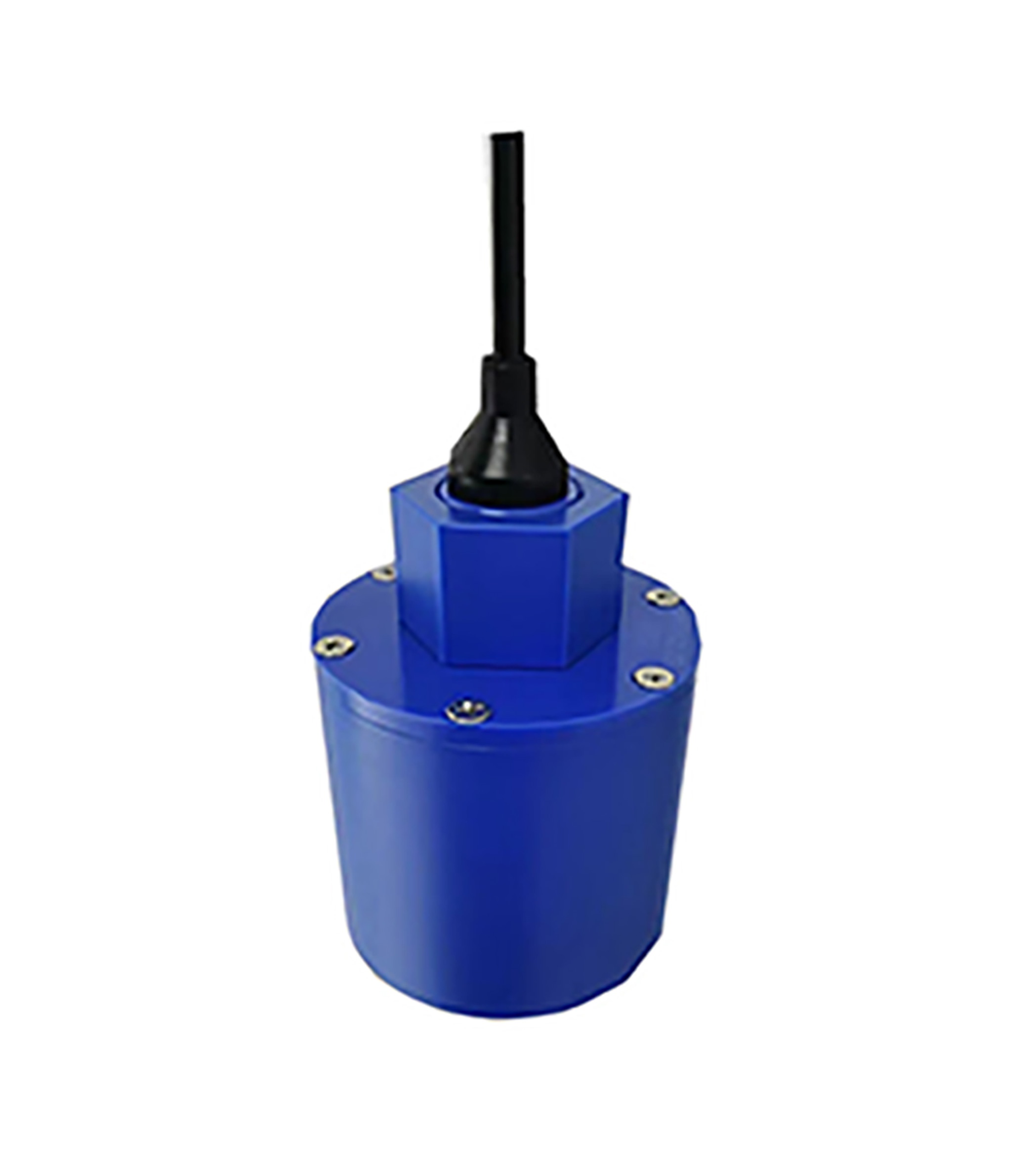

| Available Instrumentation | Single-beam echo sounder(Standard) | |

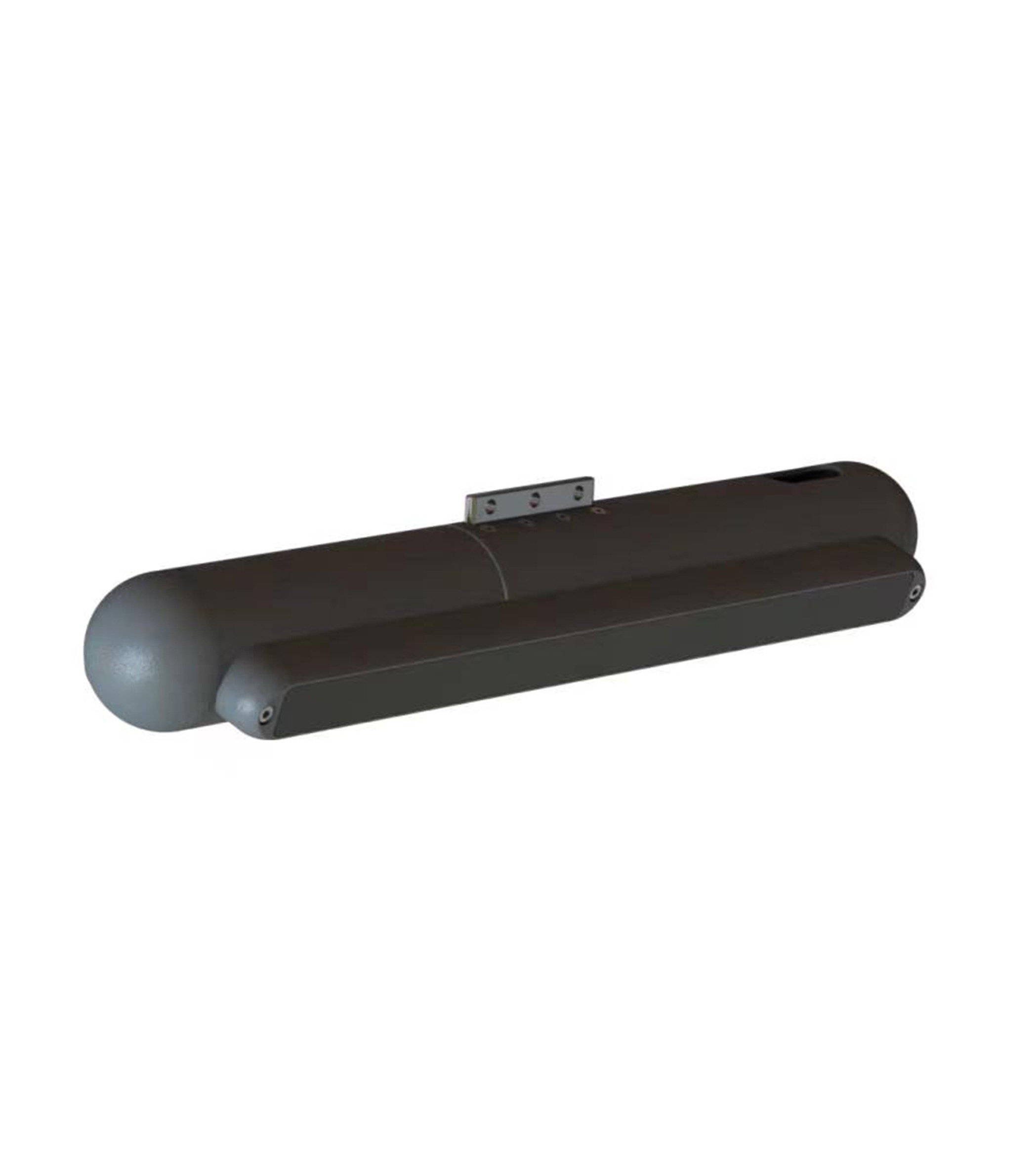

| Side scan sonar(Optional) | ||

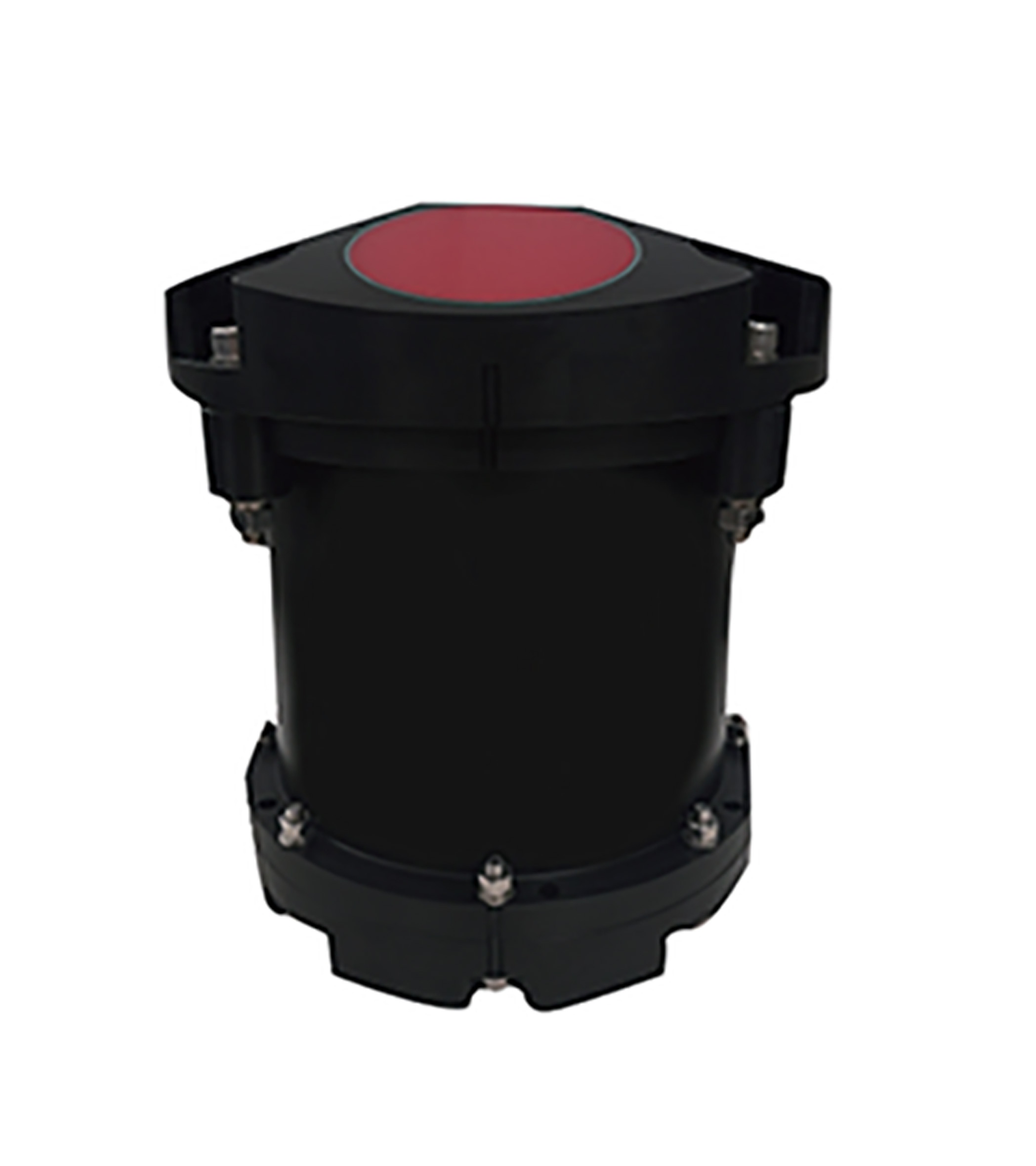

| ADCP(Optional) | ||

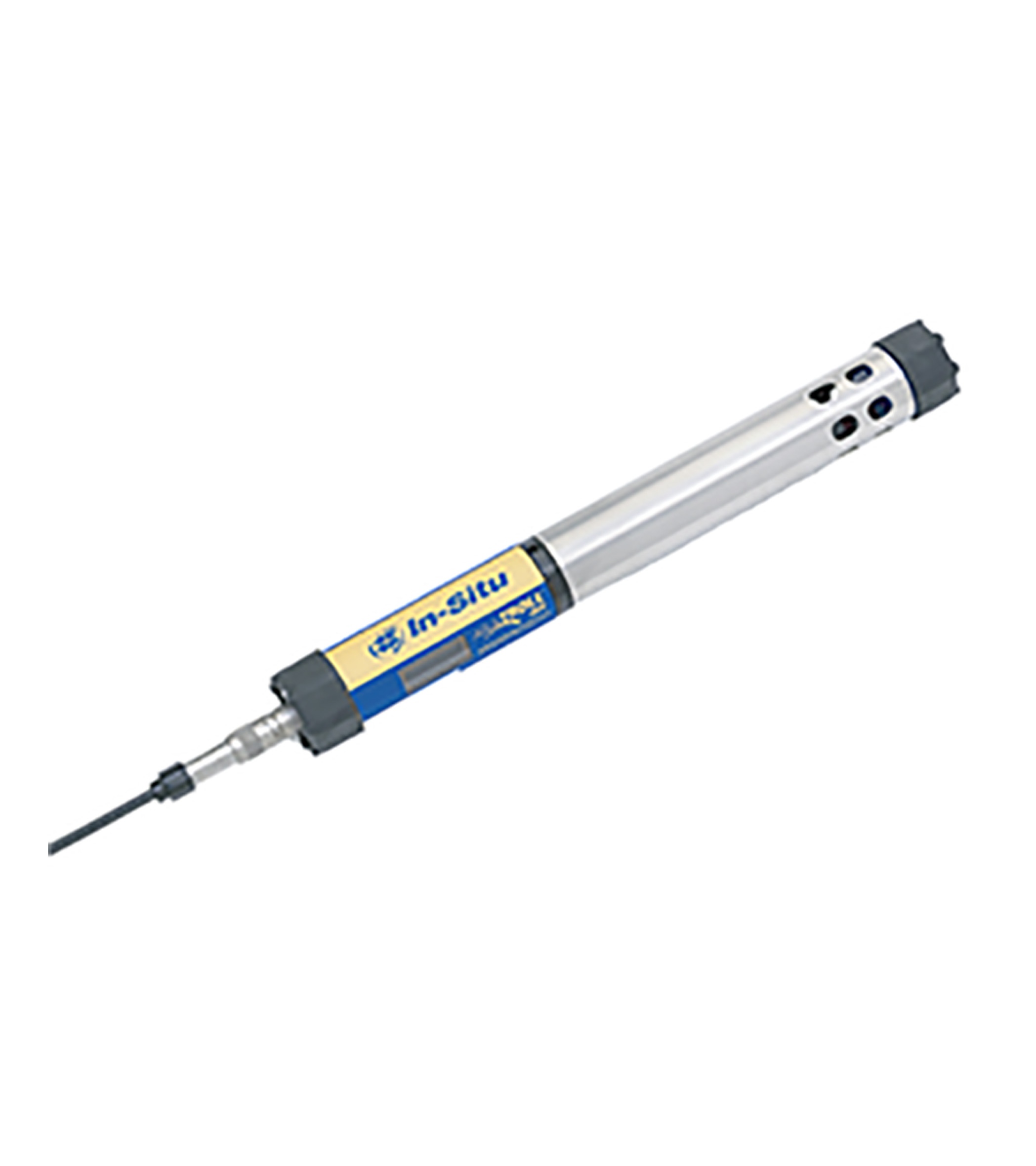

| Online water quality monitoring system(Optional) | ||

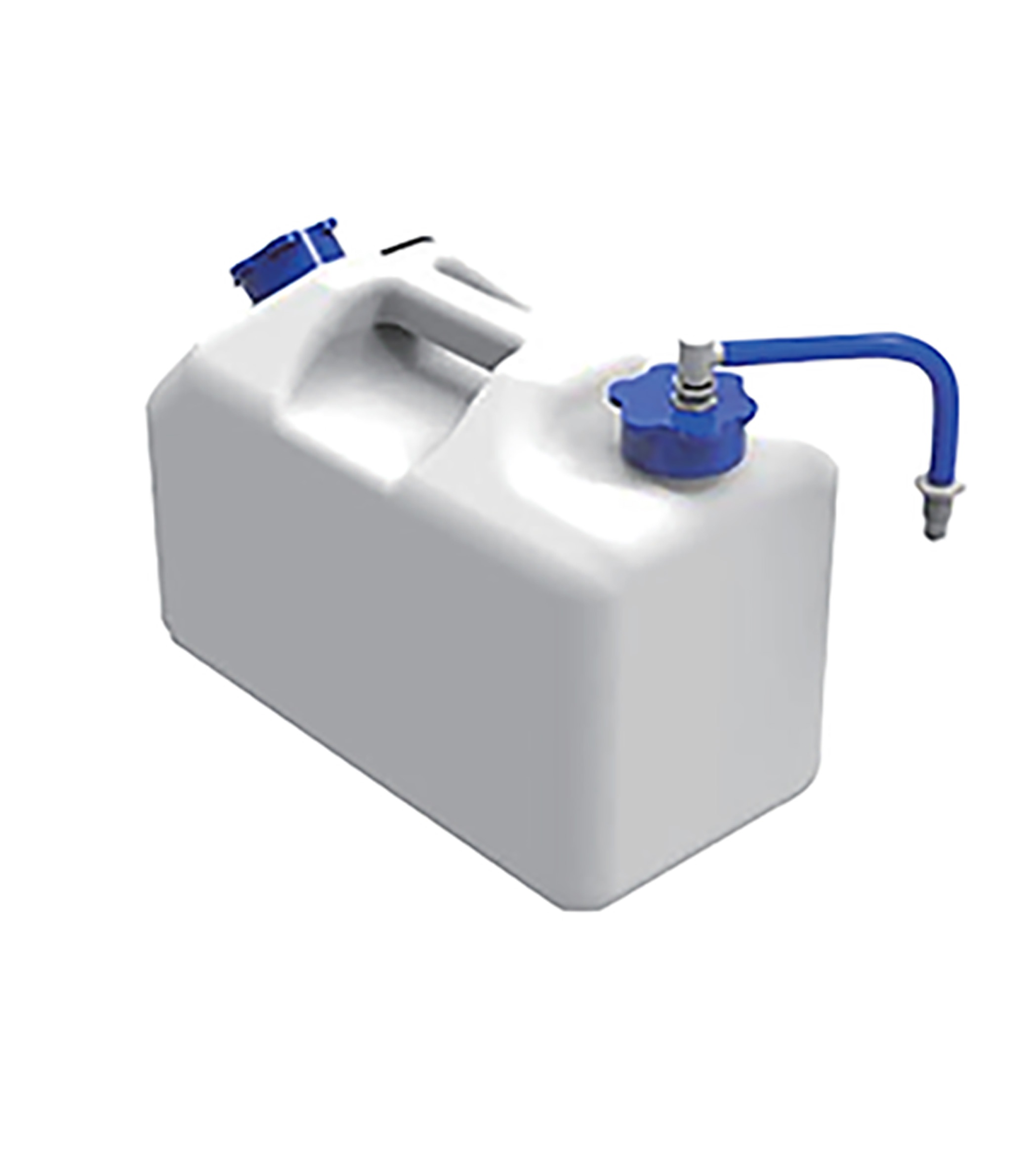

| Water sampling System(Optional) | ||
| Electrical | Battery life | 6 hours (1.5 - 2 m/s) |
| Cruising speed | 1.5 - 2 m/s | |
| Maximum speed | 6 m/s | |
| Motor | Brushless DC motor ( BLDCM) | |
| Propeller | Ducted propeller | |
| Navigation and commander System | Navigation model | Electrical |
| Automatic mode | ||
| Cruise mode | ||
| Positioning system(Optional) | GPS/BeiBou | |
| RTK | ||
| Specified GNSS device | ||
| Obstacle avoidance | Ultrasonic radar | |
| Direction control | Differential steering | |
| Communication loss protection | Automatically return to base when the communication is lost | |
| Communication | Communication mode | Wireless point-to-point |
| telecommunications | ||
| Network communication | ||
| Communication distance | network bridge: 3km | |
| Network: unlimited | ||
| Hardware configuration | Laptop/tablet computer/ ground stations(optional) | |
| Software function | USV management | |
| Route management | ||
| Status display | ||
| Data management | ||
| Log function | ||
| Remote control unit | Waterproof, dust proof and dropproof | |
| Digital high-defifinition image transmission | ||
| Ultra-long link | ||
| Impressive battery edurance | ||
| Sounding performance | Frequency | 200 kHz |
| Beam angle | 5° | |
| Sounding range | 0.4 -100 m | |
| Sounding accuracy | ±1 cm ±0.1% D (D:depth of water) | |
| Resolution | 0.01 m | |
| Data output | RS-232 (Depth data format can be customized) | |
| Pressure depth | ≥50m |
