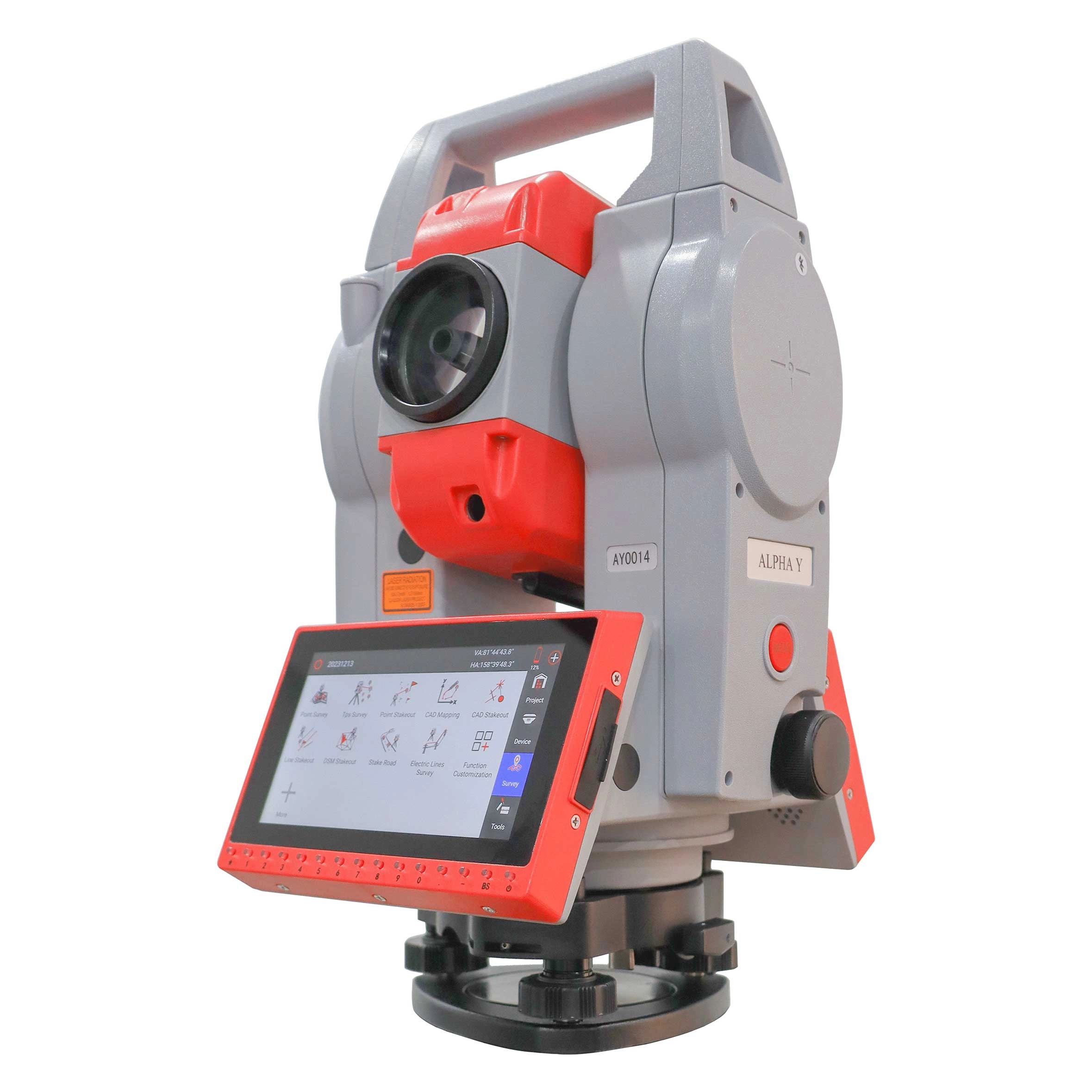

ALPHA Y
High-End Intelligent Total Station
With the advantage of the Android operating system, ALPHA Y has quick accessibility to third-party software like Surpro 6.0 onboard; with the powerful Surpro 6.0 software, it can turn many impossible measurement functions into reality. With endless drive, ALPHA Y can achieve rapid aiming of the target, which greatly improved the efficiency of the work.
Inquire Now
1730691692_dRt4VwSN3M.pdf
Product Detail

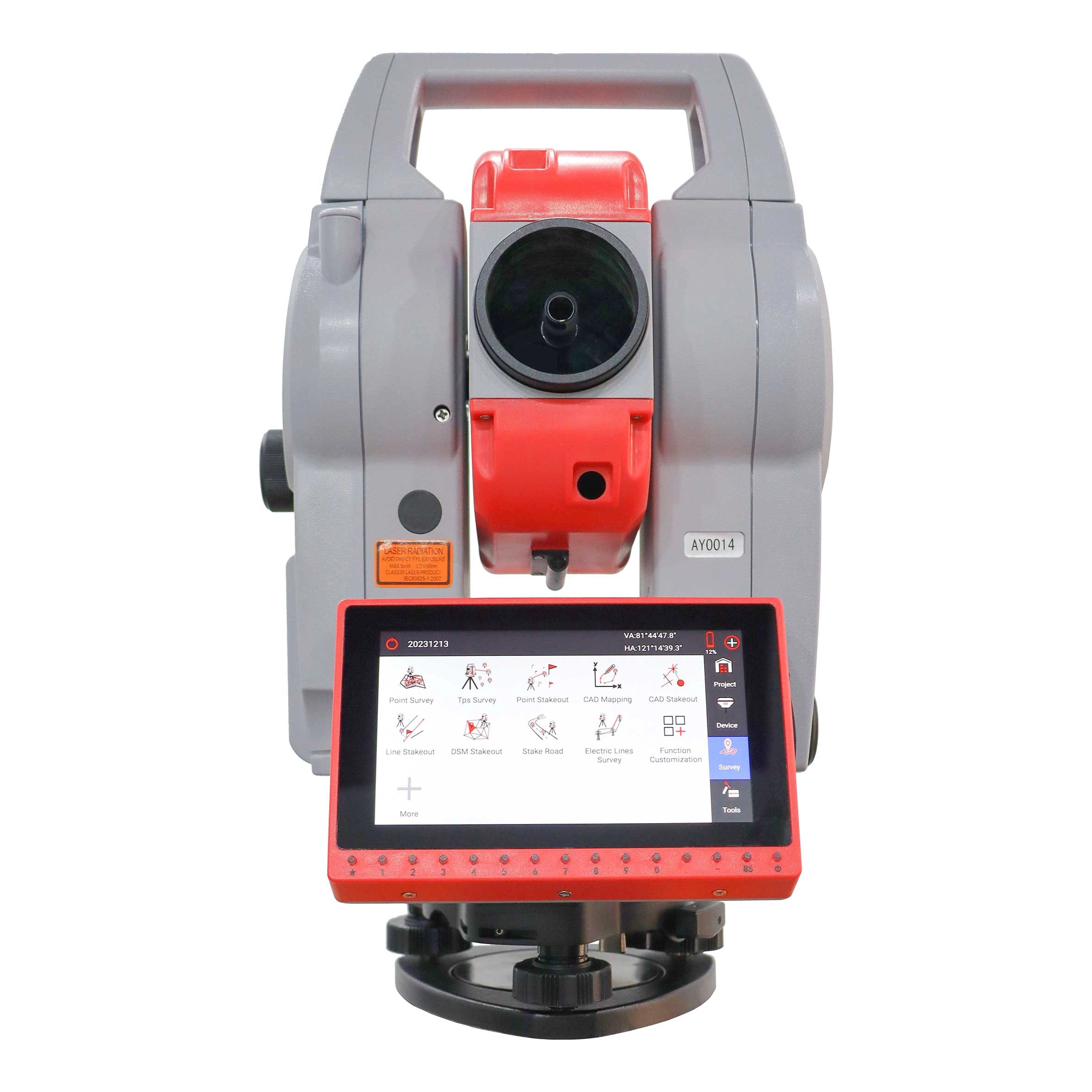

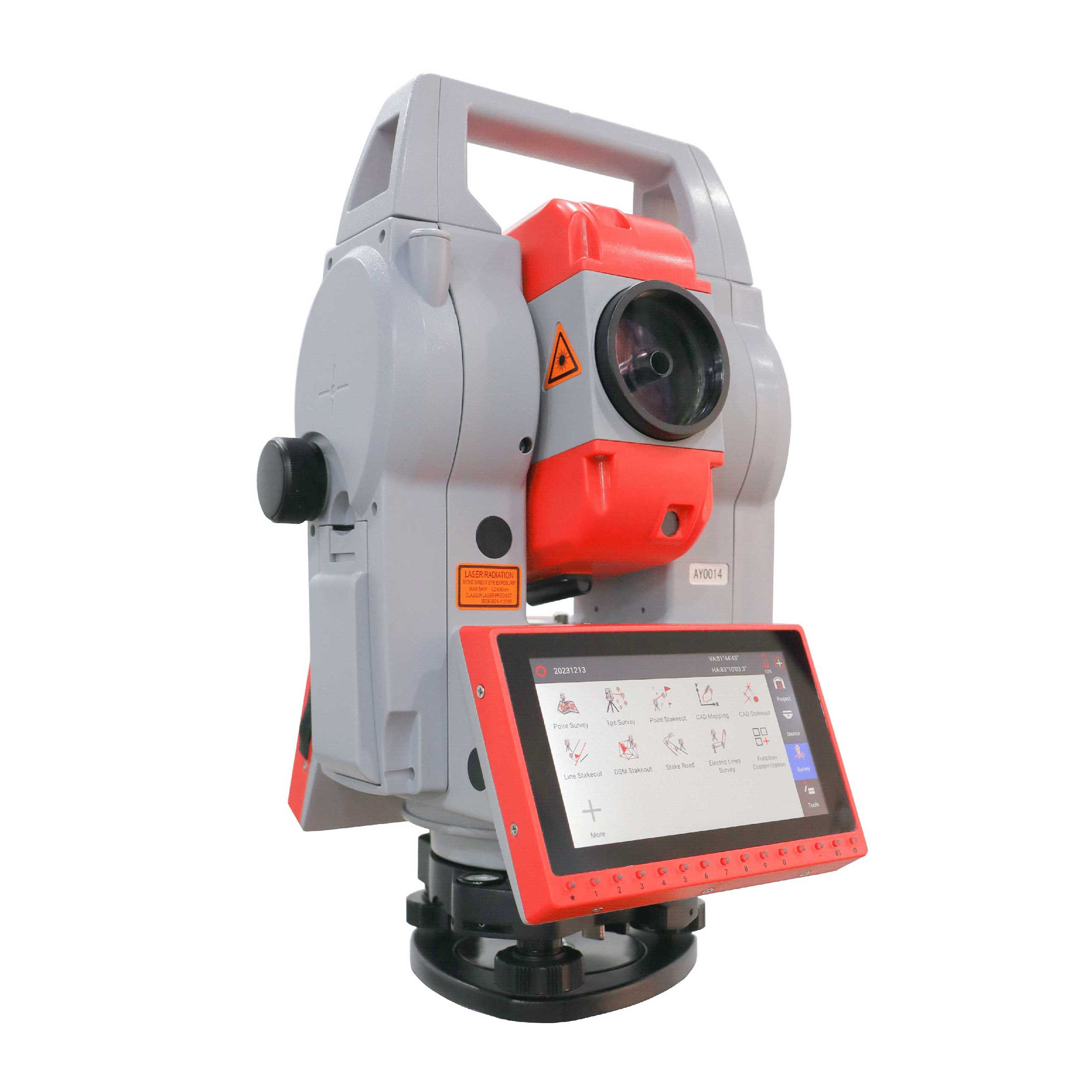

ALPHA Y- Android Total Station
Intelligent operating system
Android 11 system with open platform and strong scalability, which can customize APP according to the needs of different industries
Strong performance , smooth operation
Equipped with quad-core processor, ARM Cortex-A55 architecture, can clocked up to 2GHz
Variety of communication modes
Bluetooth, wifi, USB disk, Type-C, 4G full network (optional)
Extra memory and storage
4G RAM+32G ROM (expandable 8G+128G), running smoothly without lag
HD large screen
720P HD 5.5-inch large screen, 1280 "720 high resolution, clearly visible in strong light
Super endurance, efficient intelligence
Large capacity battery and intelligent power management support long working time and single and double side switching display
Advanced angle measurement system
Design of CCD array angle measurement system to effectively eliminate system errors

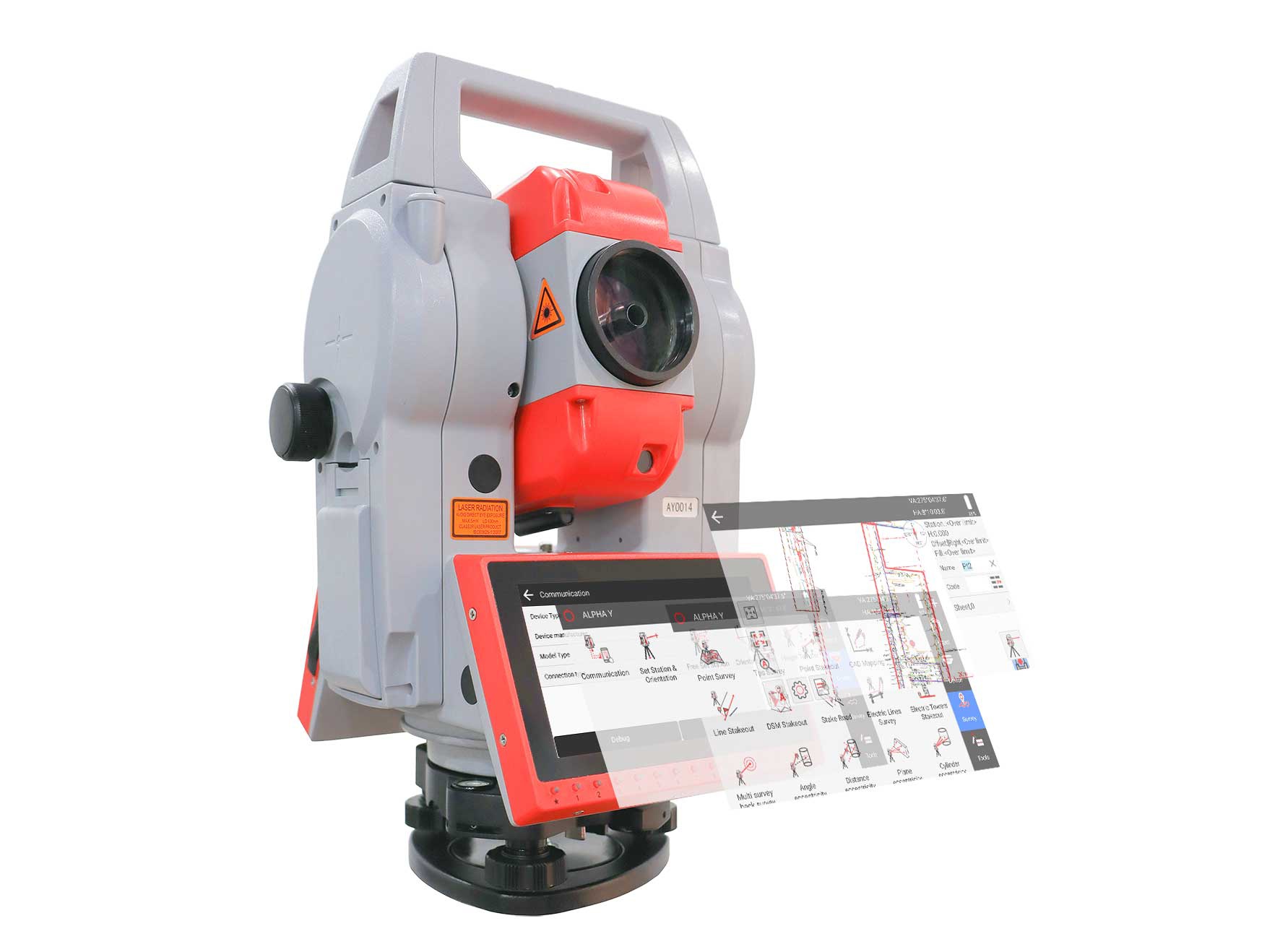

Multifunctional android measurement software
The new Android measurement software Surpro6.0 with rich measurement programs, easy to complete the internal and external business measurement

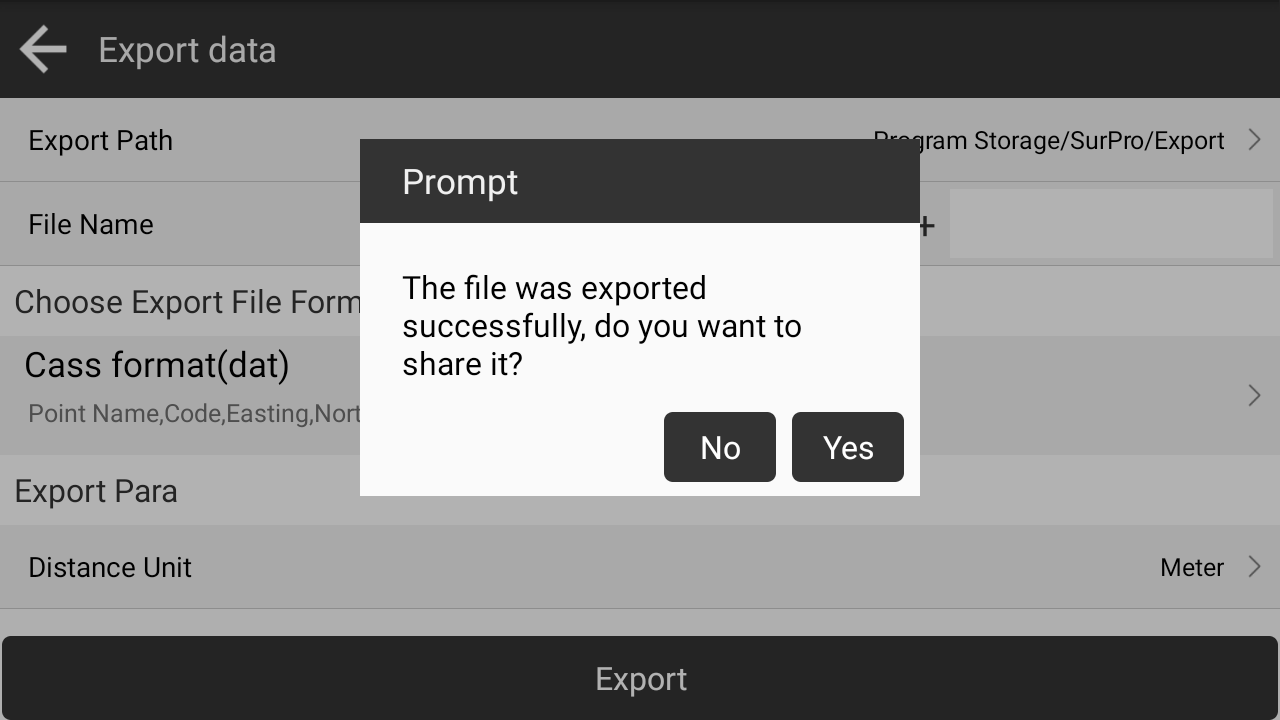

Convenient and fast data transfer
Easily import and export Csw/txt/dat files, support CAD drawing import, CAD lofting, and OTA upgrade

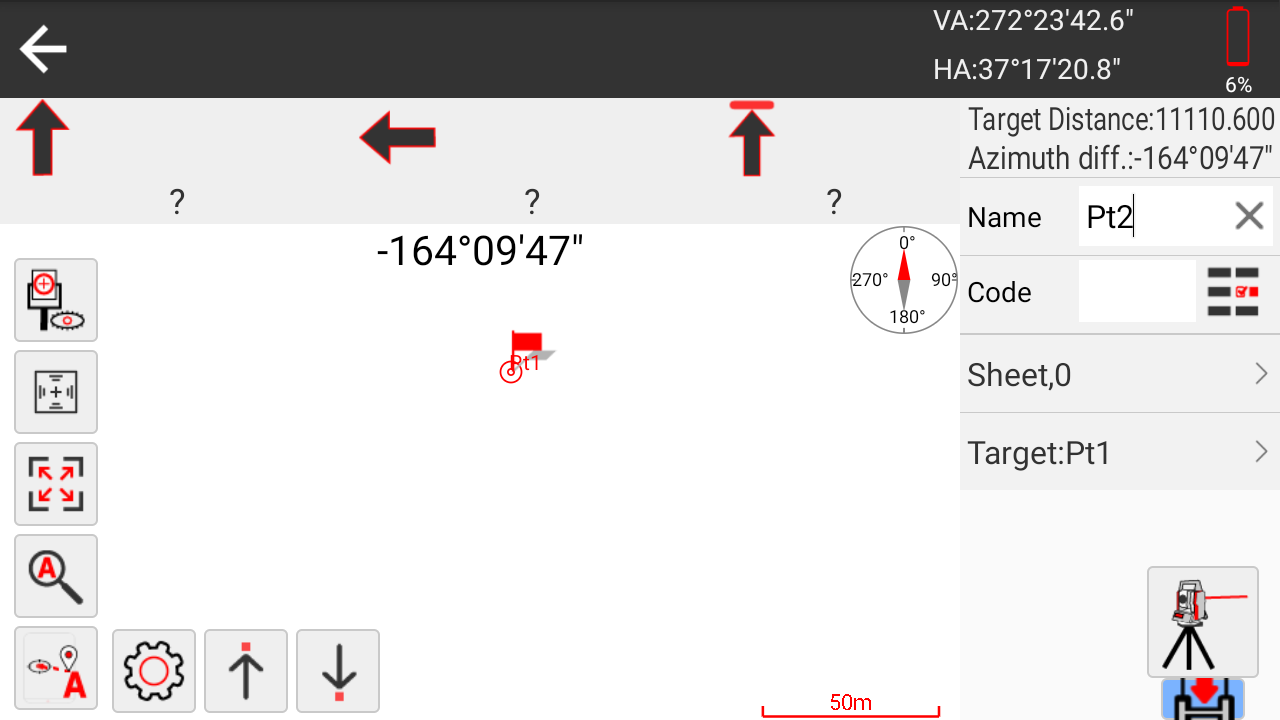

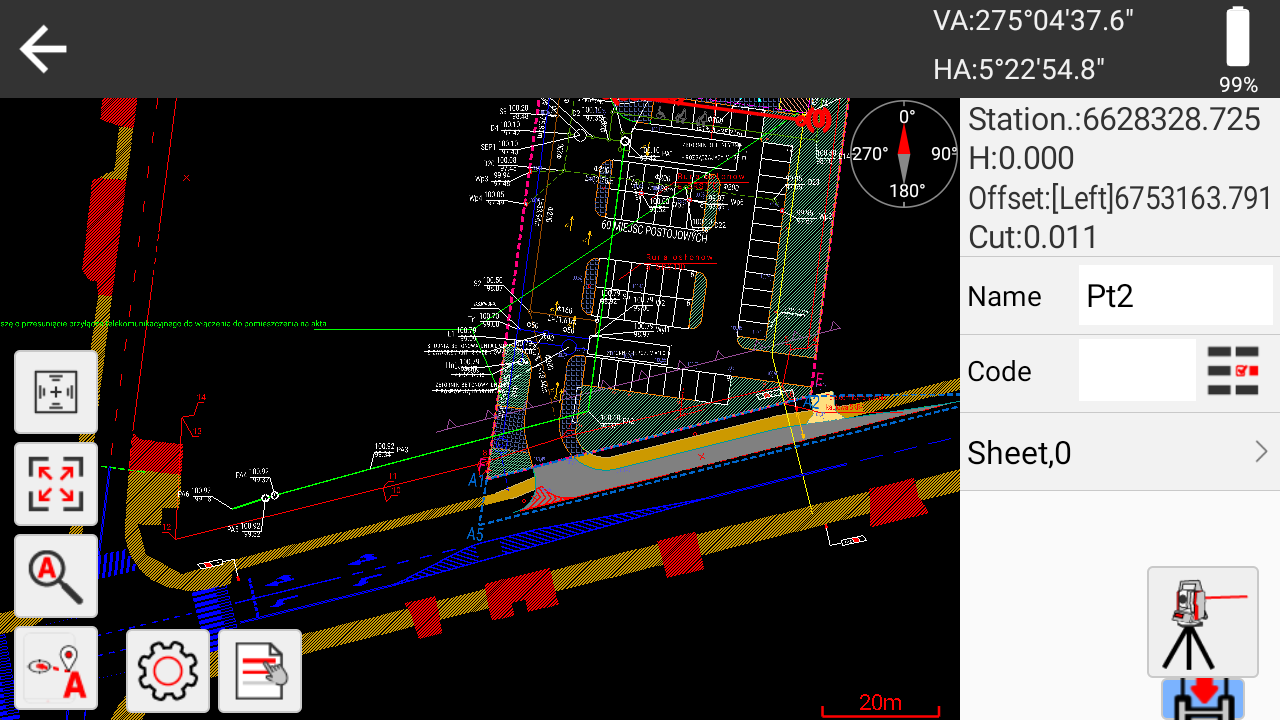

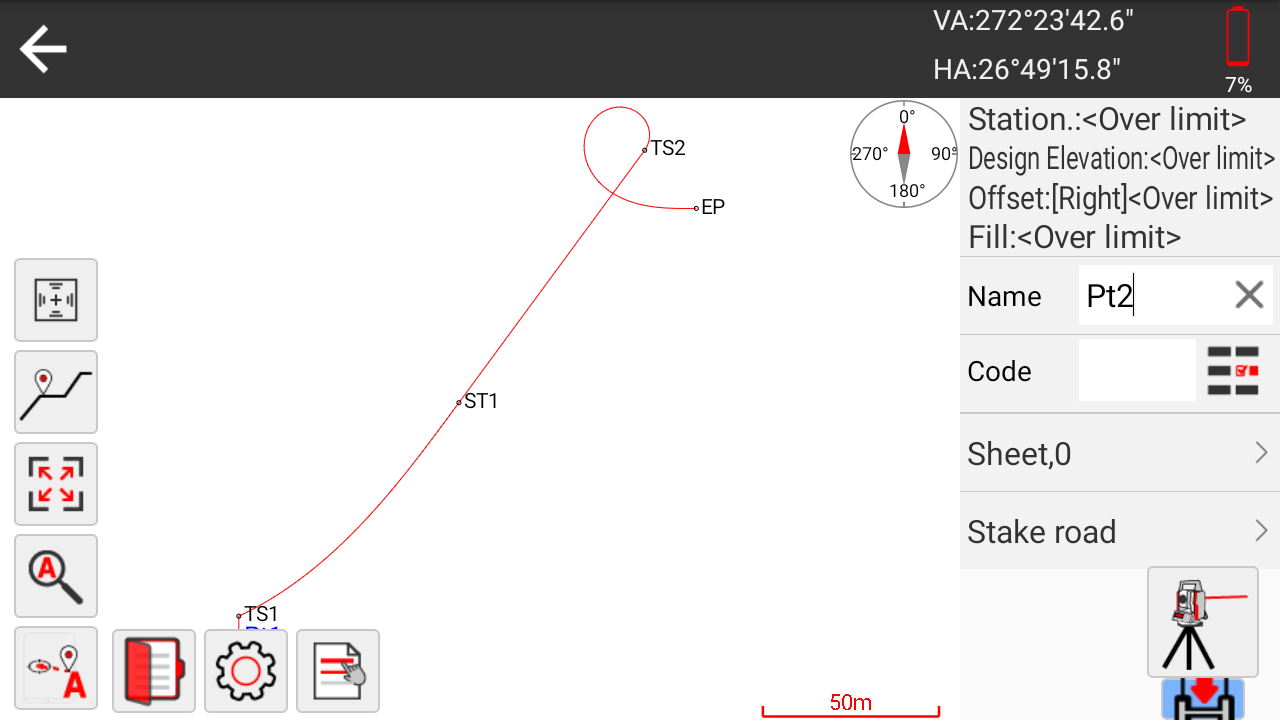

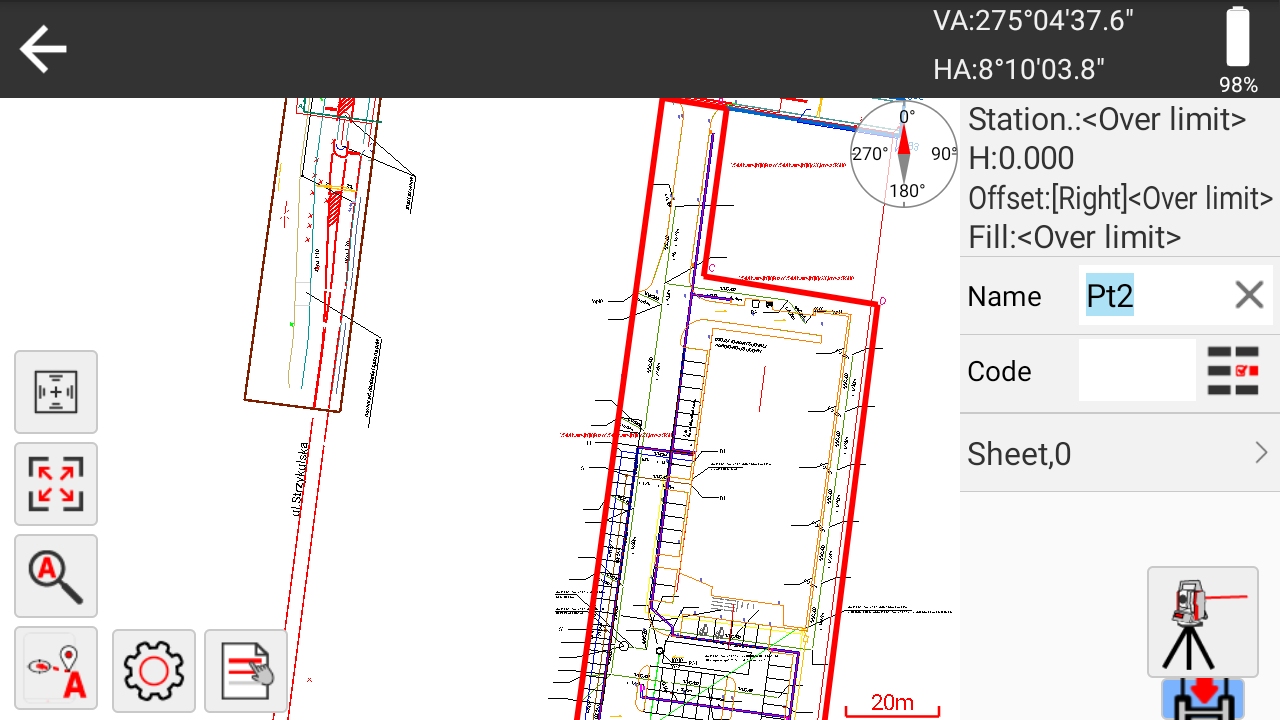

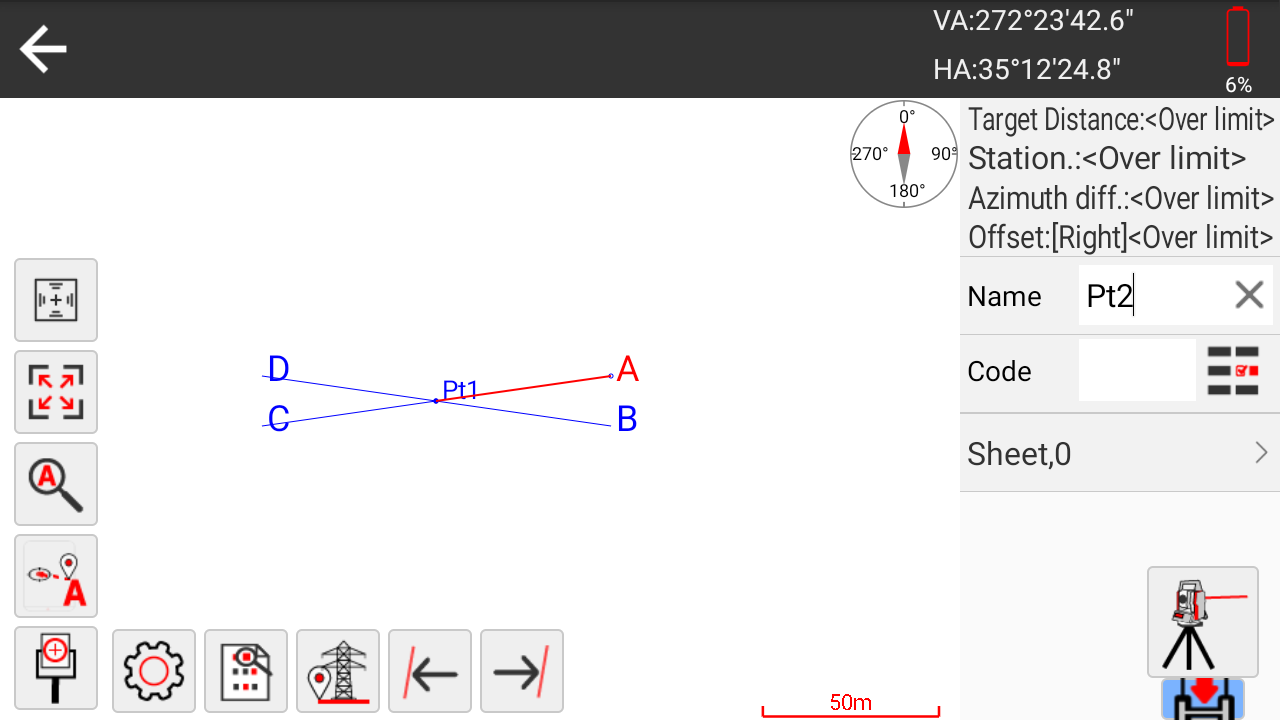

Graphical stake out, clear at a glance
Supports CAD graphics stake out, making stake out more efficient
Specifications
| Telescope | Length | 156mm |
| lmage | Erect | |
| Objective aperture | Telescope:Ф45mm(meas.dist.:Ф50mm) | |
| Magnification | 30 X | |
| Field of view | 1°30' | |
| Shortest focus distance | 1.0m | |
| Angle measurement | Reading system | Absolute encoder |
| Angle unit | 360°/400gon/6400mil,selectable | |
| Display resolution | 1"/5"/10"(or0.2mgon/lmgon/2mgon) | |
| Accuracy | 2" | |
| Distance measurement | Laser class(lEC60825-1) | Reflectorless: Class 3R |
| Reflective sheet/RP60: Class 3R | ||
| Prism: Class 1 | ||
| Measurement range(Good condition)*2 | Reflectorless*3 | |
| Reflectorless: 1 to 1000m | ||
| Reflective sheet/RP60: 1 to 1200m | ||
| Single prism: 1 to 5000m | ||
| Accuracy | Prism: 2mm+2ppm | |
| Reflective sheet/RP60: 2mm+2ppm | ||
| Reflectorless: 2mm+2ppm | ||
| Measuring time | Fine mode: 0.5s | |
| Tracking mode: 0.3s | ||
| Display resolution(m/inch selectable): 0.1mm/1mm | ||
| Pressure input range: 500hPato1500hPa(1hPa steps) | ||
| Temperature input range: -40°C to+60°C(1°C steps) | ||
| Prism constant correction: －99.9mm to +99.9mm | ||
| Compensator(Dual-axis) | Range/Setting accuracy | ±3'/1' ' |
| Level vial sensitivity | Plate level vial | 30"/2mm |
| Circular level vial | 8'/2mm | |
| Laser plummet(Standard)* 4 | Accuracy | ±1mm/0.8m-1.5m |
| Spot size | ≤2.0mm/0.8m-1.5m | |
| Optical plummet(Factory optional) | Accuracy | ±0.8mm/1.5m |
| lmage | Erect | |
| Magnification | 3 × | |
| Field of view | 4° | |
| Focus range | 0.5m to ∞ | |
| Power | Battery | 5200mAh Li-ion Rechargeable |
| Output voltage | 7.4V DC | |
| Continuous operation time | Approx.8 hours(at+20°C) | |
| Charging time(at +20°C) | Approx.4 hours | |
| Third Party software supported | Surpro 6.0 | |
| Others | Display | 5.5 inch; Resolution 720*1280 |
| CPU | 4-core 64 bit ARM A55 CPU 2GHZ | |
| Memory | 4G RAM+32G ROM(8G+128G optional) | |
| Keyboard | 15 keys under the display | |
| Interface USB /Type C/Bluetooth/WIFl/RS-232C(4G module optional)Trigger key)TF card/Voice output/Buzz output/RTC/Screen backlight adjustment/Temperature and air pressure sensor | Supported | |
| Network | (4G optional) | |
| System | System | |
| Water and dust protection | IP55(IEC60529) | |
| Operating temperature | -20°C-+50°C | |
| Storage temperature | -40°C-+55°C | |
