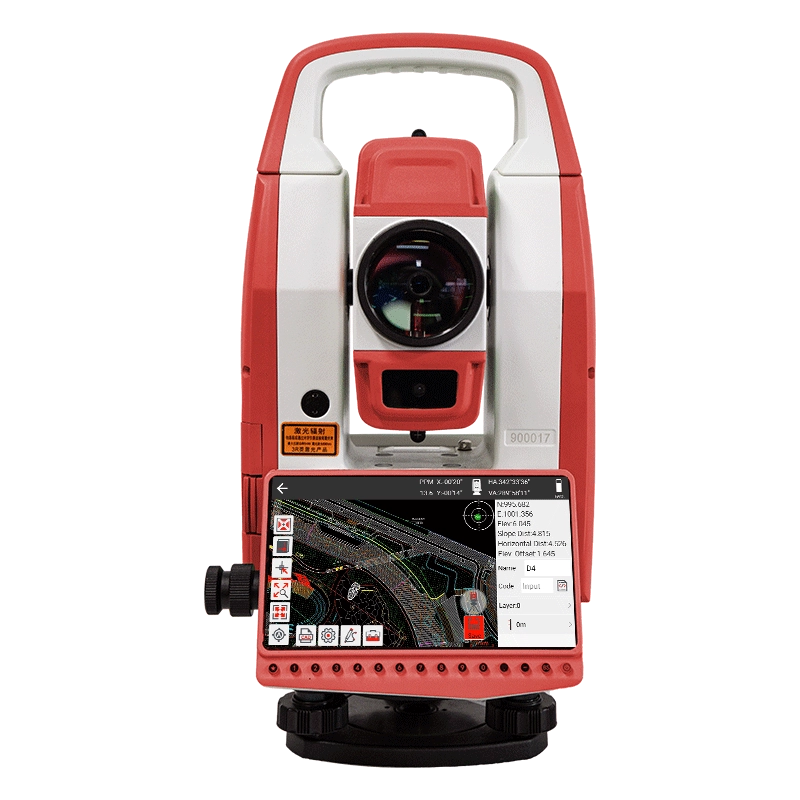

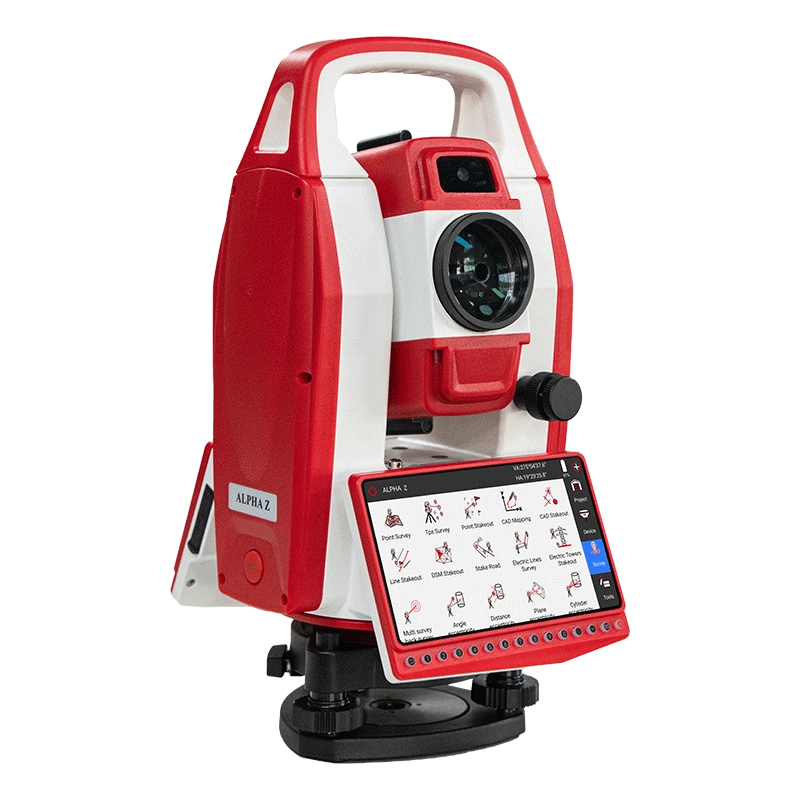

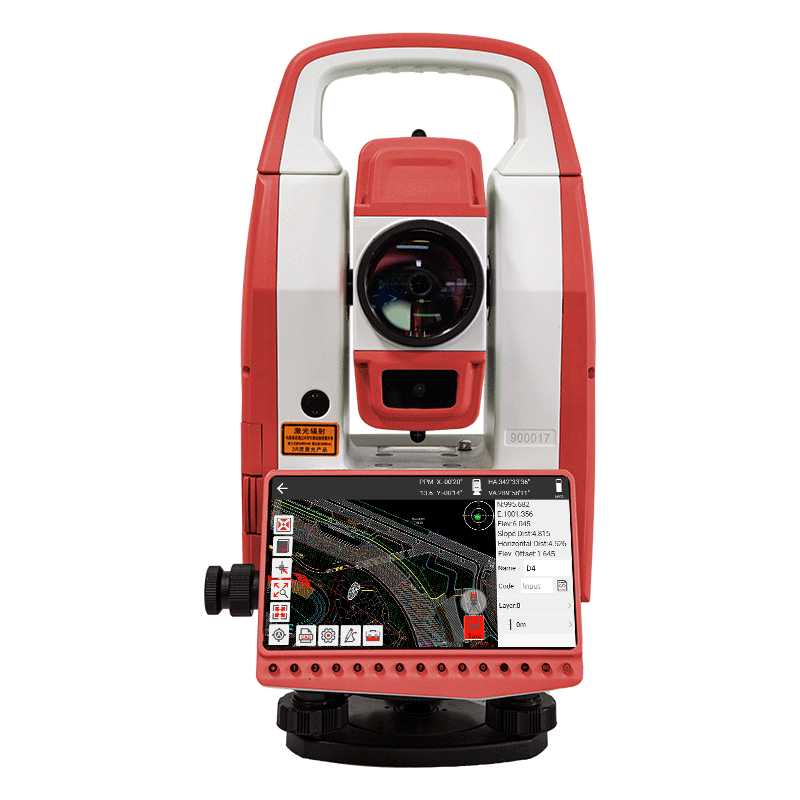

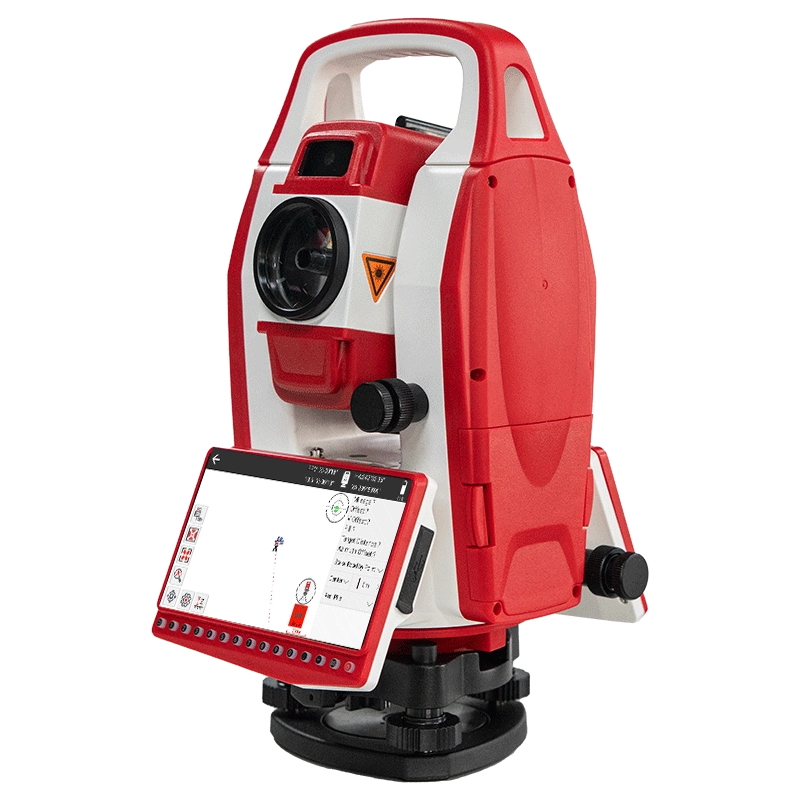

ALPHA Z
Android Total Station
The ALPHA Z Android Intelligent Total Station is equipped with Android 12 and Surpro 6.0 software, supporting CAD graphical stakeout and intelligent visual targeting. It features 2″ angle accuracy, high-precision distance measurement, a quad-core processor, a 5.5-inch large HD screen, and full communication including Bluetooth, WiFi and 4G. Suitable for multi-scenario surveying and mapping, with IP55 protection, long battery life, high efficiency, intelligence, precision and convenience.
Inquire Now
ALPHA Z brochure 20260415.pdf
ALPHA Z

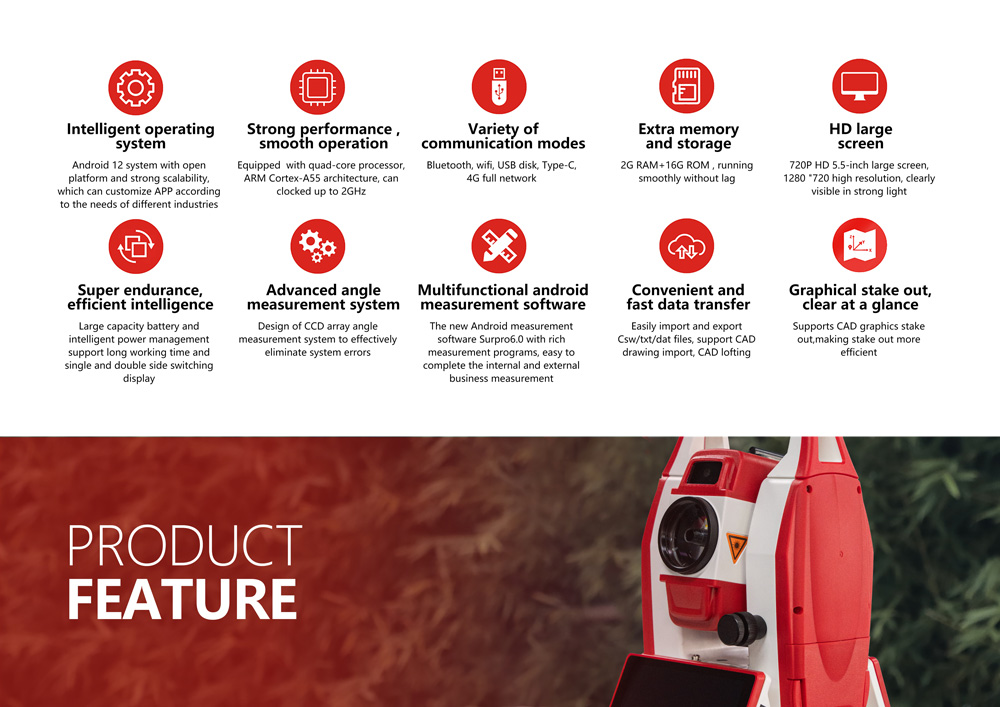

Intelligent operating system
Android 12 system with open platform and strong scalability, which can customize APP according to the needs of different industries.
Strong performance ,smooth operation
Equipped with quad-core processor, ARM Cortex-A55 architecture, can clocked up to 2GHz.
Variety of communication modes
Bluetooth, wifi, USB disk, Type-C, 4G full network.
Extra memory and storage
2G RAM+16G ROM , running smoothly without lag.
HD large screen
720P HD 5.5-inch large screen, 1280 "720 high resolution, clearly visible in strong light.
Super endurance, efficient intelligence
Large capacity battery and intelligent power management support long working time and single and double side switching display.
Advanced angle measurement system
Design of CCD array angle measurement system to effectively eliminate system errors.
Multifunctional android measurement software
The new Android measurement software Surpro6.0 with rich measurement programs, easy to complete the internal and external business measurement.
Convenient and fast data transfer
Easily import and export Csw/txt/dat files, support CAD drawing import, CAD lofting.

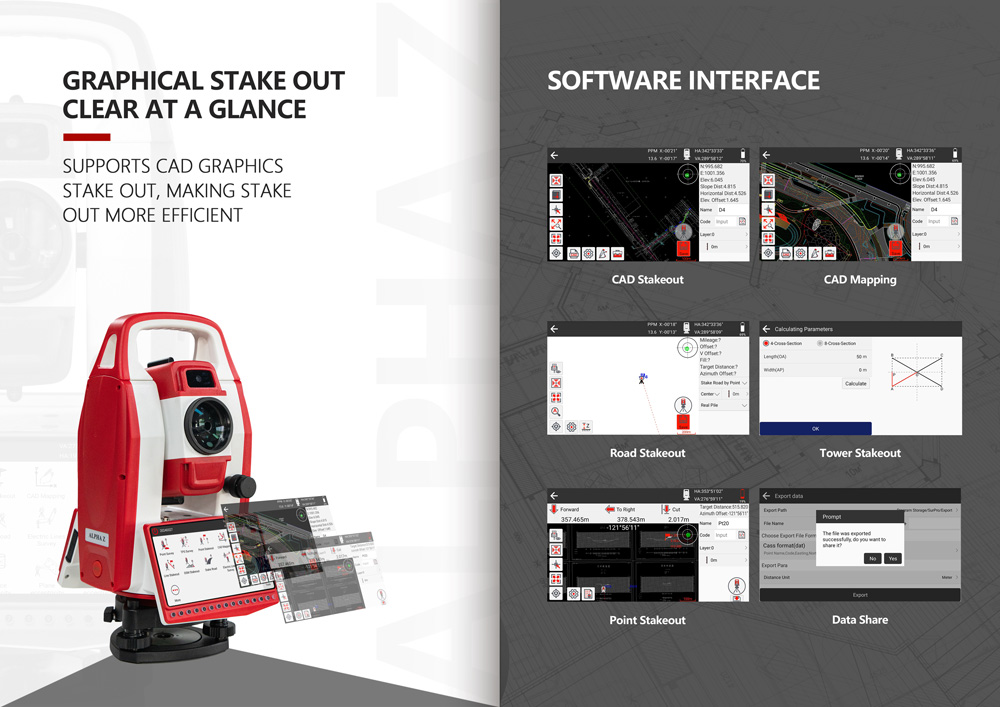

Graphical stake out, clear at a glance
Supports CAD graphics stake out,making stake out more efficient.

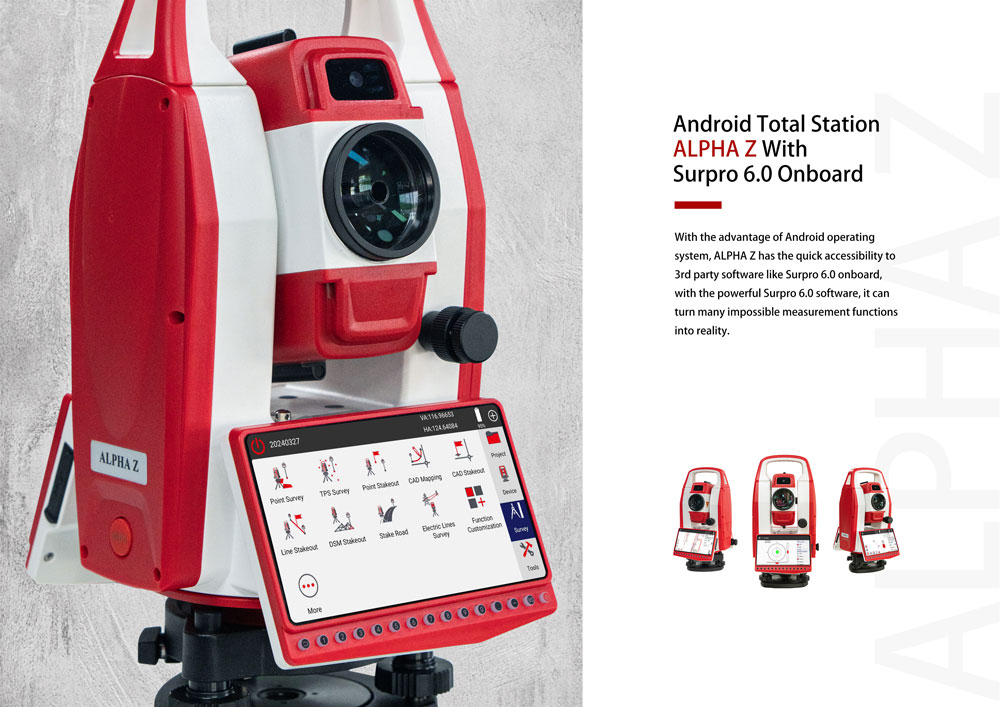

Android Total Station ALPHA Z With Surpro 6.0 Onboard
Supports CAD graphics stake out, making stake out more efficient

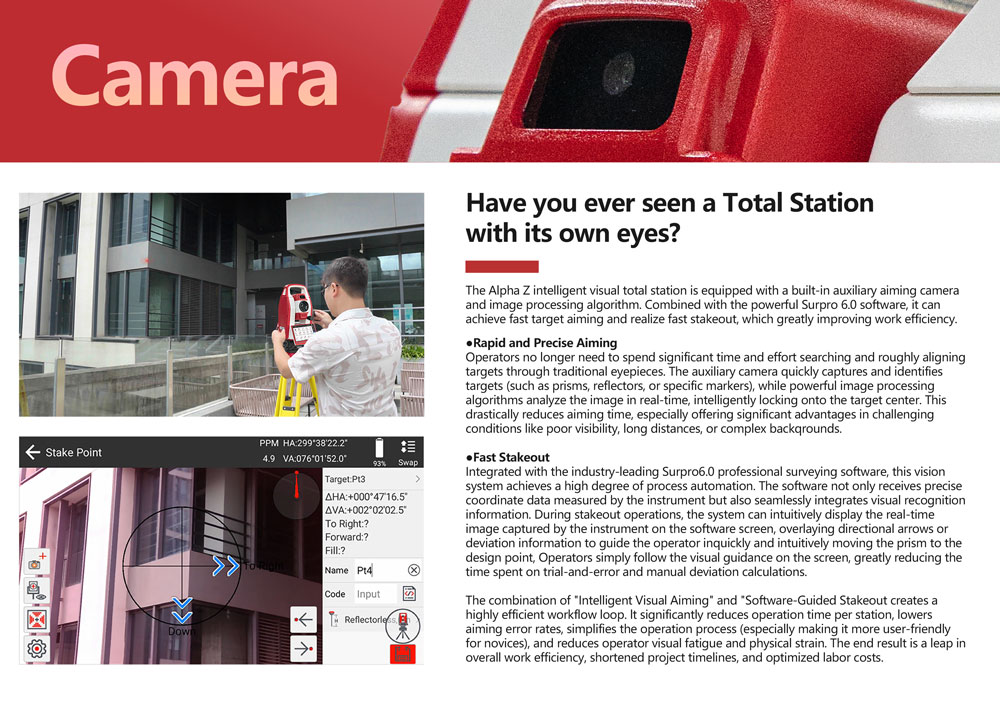

Equipped with an internal auxiliary aiming camera and advanced image processing algorithms

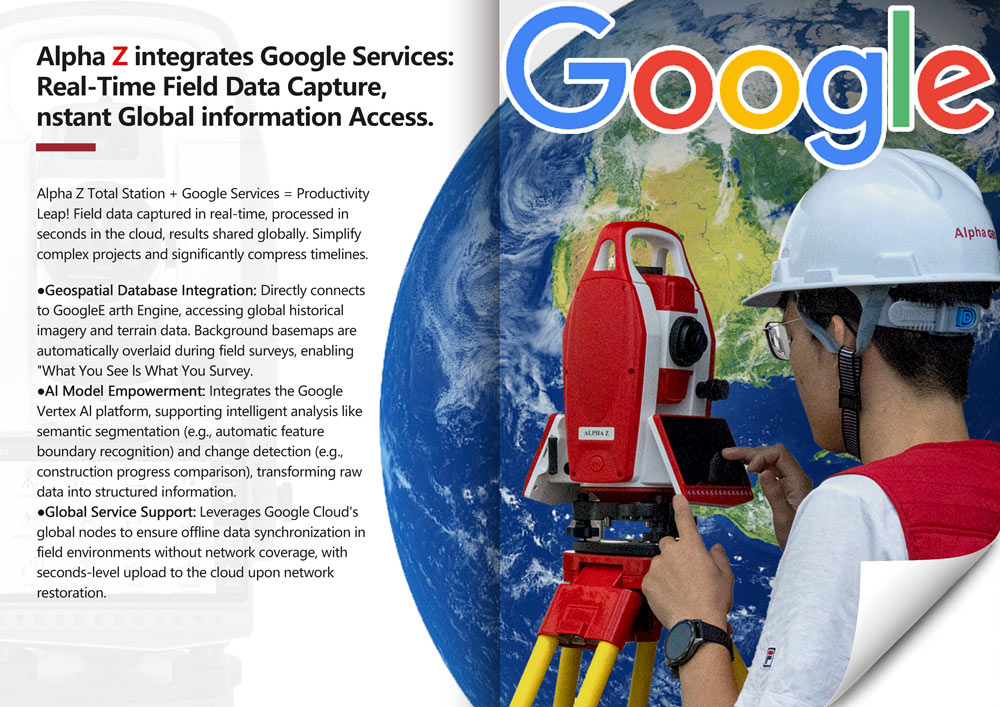

Alpha Z integrates Google ServicesReal-Time Field Data Capture, nstant Global information Access.

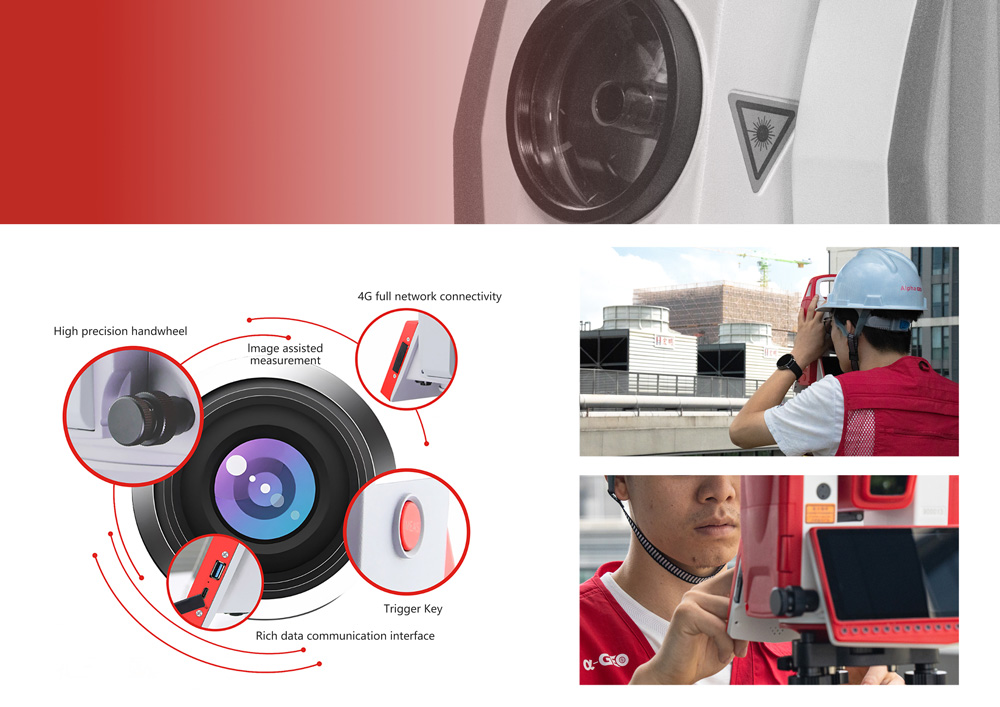

• 4g Full Network Connectivity
• High Precision Handwheel
• Image Assisted Measurement
• Trigger Key
• Rich Data Communication Interface
Product Showcase

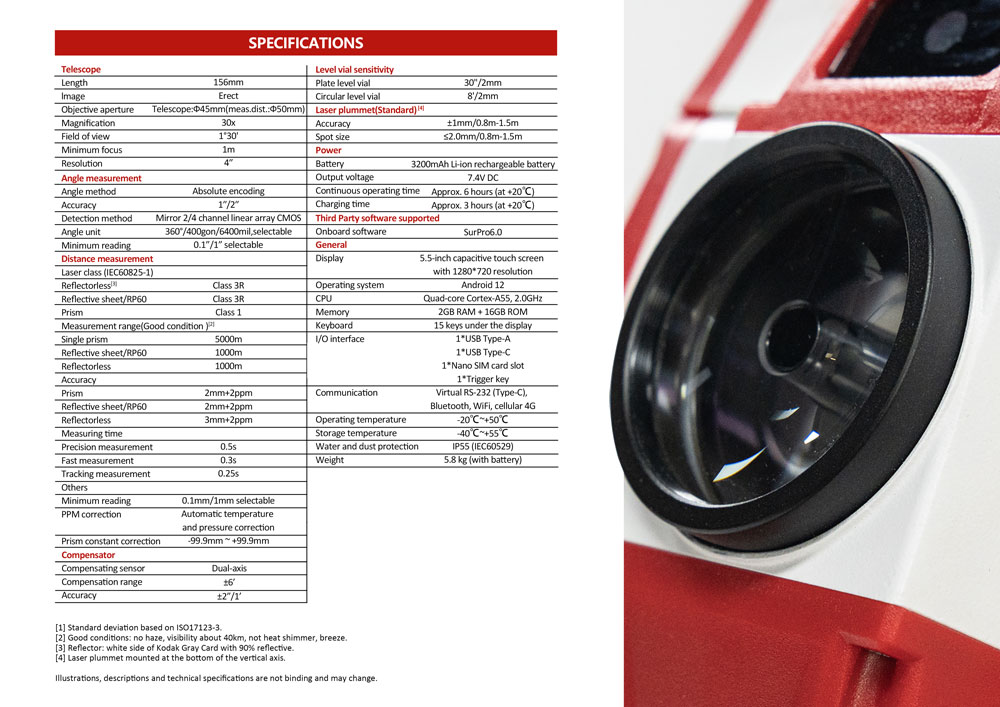

Specifications
| Laser class (IEC60825-1) | |
| Reflectorless[3] | Class 3R |
| Reflective sheet/RP60 | Class 3R |
| Prism | Class 1 |
| Measurement range(Good condition)[2] | |
| Single prism | 5000m |
| Reflective sheet/RP60 | 1000m |
| Reflectorless | 1000m |
| Accuracy | |
| Prism | 2mm+2ppm |
| Reflective sheet/RP60 | 2mm+2ppm |
| Reflectorless | 3mm+2ppm |
| Measuring time | |
| Precision measurement | 0.5s |
| Fast measurement | 0.3s |
| Tracking measurement | 0.25s |
| Others | |
| Minimum reading | 0.1mm/1mm selectable |
| PPM correction | Automatic temperature and pressure correction |
| Prism constant correction | -99.9mm ~ +99.9mm |
| Display | 5.5-inch capacitive touch screen with 1280*720 resolution |
| Operating system | Android 12 |
| CPU | Quad-core Cortex-A55, 2.0GHz |
| Memory | 2GB RAM + 16GB ROM |
| Keyboard | 15 keys under the display |
| I/O interface |
1USB Type-A 1USB Type-C 1*Nano SIM card slot 1*Trigger key |
| Communication | Virtual RS-232 (Type-C), Bluetooth, WiFi, cellular 4G |
| Operating temperature | -20°C~+50°C |
| Storage temperature | -40°C~+55°C |
| Water and dust protection | IP55 (IEC60529) |
| Weight | 5.8 kg (with battery) |
Third Party Software Supported
| Onboard software | SurPro6.0 |
| Length | 156mm |
| Image | Erect |
| Objective aperture | Telescope:Φ45mm(meas.dist.:Φ50mm) |
| Magnification | 30x |
| Field of view | 1°30' |
| Minimum focus | 1m |
| Resolution | 4" |
| Angle method | Absolute encoding |
| Accuracy | 2" |
| Detection method | Mirror 2 channel linear array CMOS |
| Angle unit | 360°/400gon/6400mil, selectable |
| Minimum reading | 0.1"/1" selectable |
| Compensating sensor | Dual-axis |
| Compensation range | ±6' |
| Accuracy | ±2"/1' |
| Battery | 3200mAh Li-ion rechargeable battery |
| Output voltage | 7.4V DC |
| Continuous operating time | Approx. 6 hours (at +20°C) |
| Charging time | Approx. 3 hours (at +20°C) |
| Plate level vial | 30"/2mm |
| Circular level vial | 8'/2mm |
Laser Plummet (Standard)[4]
| Accuracy | ±1mm/0.8m-1.5m |
| Spot size | ≤2.0mm/0.8m-1.5m |
Hot Tags
Related Products

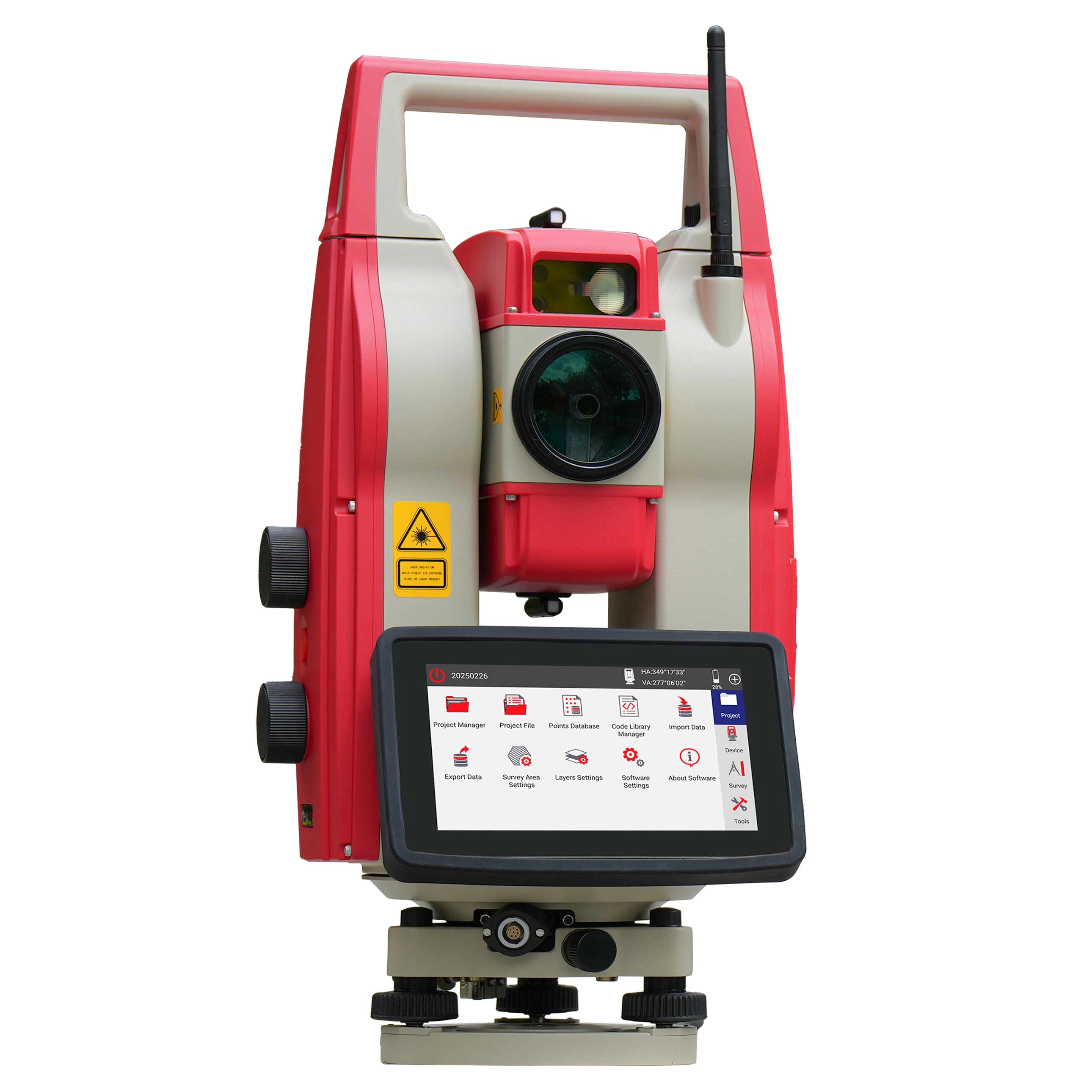

ALPHA R1
