Basic Routine Total Station

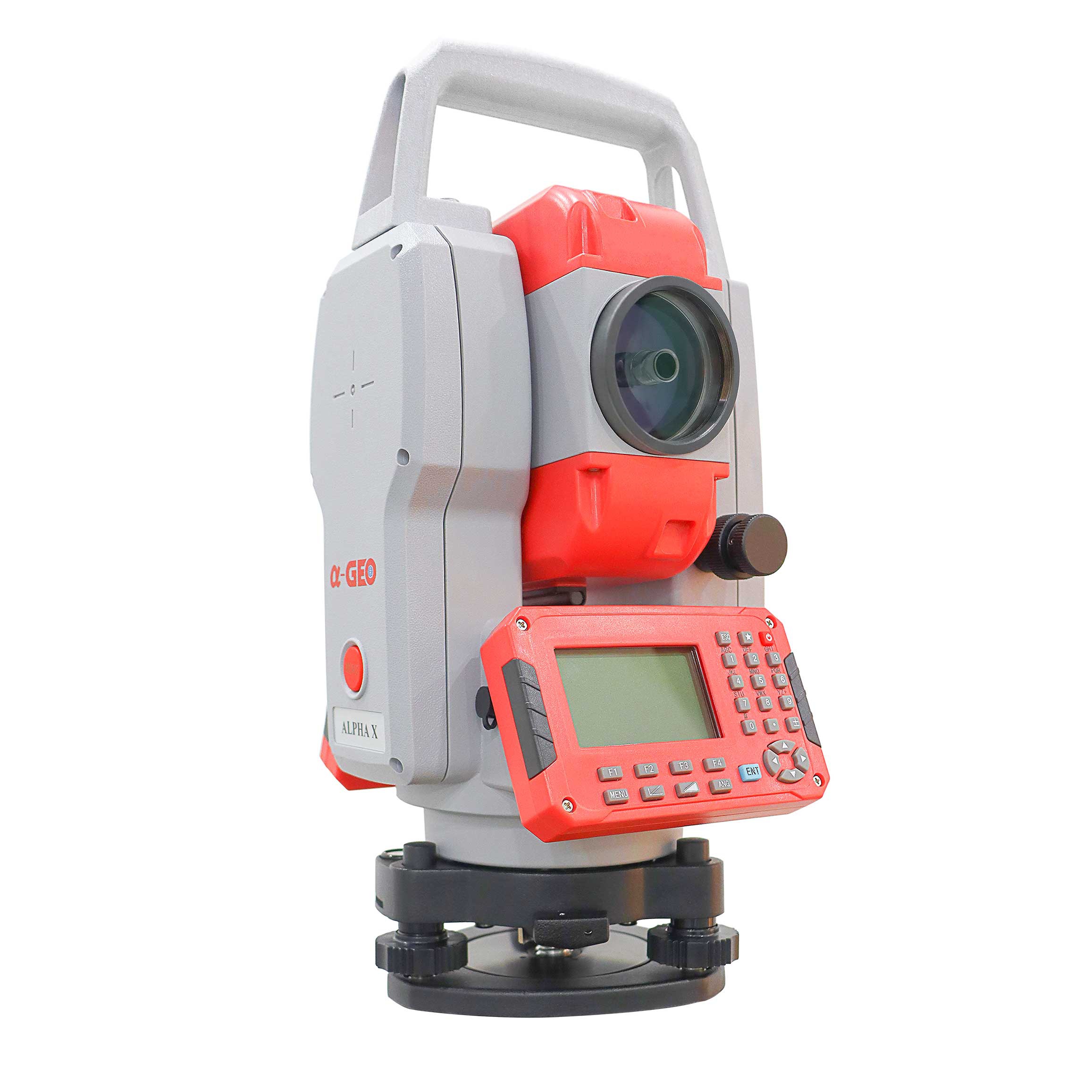

ALPHA X

ALPHA X is a compact new design Total station ,equipped with Dual-axis compensator,alphanumeric keyboard; LCD display with 6 lines x 20 characters and trigger key,which can make your survey easier. with standard bluetooth onboard,you can use data controller with Surpro 6.0 software freely ,which can make your job more efficient.

Inquire Now

Alpha X brochure(2025.4.9).pdf

ALPHA X

Talk with expert

View Details

Specifications

Applications

Get free a Quote

Alpha X brochure(2025.4.9)

Dual Operating Modes for Measurement

▸ SLAM Mode: Handheld scanner design, suitable for GNSS-denied environments such as tunnels, underground spaces, and buildings. Equipped with dual cameras for 360° panoramic scanning, generating high-fidelity true-color point clouds and supporting data acquisition in dynamic environments.

▸ RTK Mode: Used with a centering pole, achieving centimeter-level positioning accuracy in open-sky environments. Retains the precision of traditional surveying while outputting real-time point clouds, ideal for ground feature collection.

Multi-Technology Integrated Data Acquisition

▸ Integrates GNSS, high-precision vision modules, and LiDAR systems, fusing SLAM and high-accuracy RTK technologies to establish a unified coordinate system for indoor and outdoor environments.

▸ Features multi-sensor fusion (GNSS/IMU/LiDAR/vision) combined with Kalman filter-based trajectory optimization, maintaining ≤5cm positioning accuracy within 50 meters even in GNSS-challenged scenarios.

Non-Contact High-Precision Scanning

▸ Adopts active laser scanning technology with a sampling rate of 200,000 points per second. Measurement range: 0.1m-40m (10% reflectivity) and 0.1m-70m (80% reflectivity), adaptable to different surface materials.

▸ Supports real-time point cloud coordinate output and post-processing optimization. Point cloud absolute accuracy: ≤6cm (outdoor RTK environment), ≤5cm (indoor environment); point cloud thickness: ≤3cm.

Full-Scene Communication and Positioning Guarantee

▸ Multi-mode communication architecture: Supports 4G cellular networks, UHF radio, Wi-Fi, and Bluetooth 5.2, meeting needs for wide-area coverage, long-distance communication, and local fast data transmission.

▸ 1408-channel full-constellation and full-frequency-band tracking (GPS/GLONASS/Beidou, etc.), compatible with RTCM2x/RTCM3x differential data formats. Anti-jamming technology ensures stable positioning in complex environments.

Visualization and Navigation Assistance

▸Dual 48MP panoramic lenses with 190° FOV, generating HDR true-color point clouds to restore scene details. 5MP AR navigation camera provides centimeter-level real-time on-site positioning guidance.

▸ 1.3-inch industrial-grade HD display (240×240px) clearly shows key data such as scanning time, distance, storage capacity, and GNSS solution results even under direct sunlight.

Data Storage and Environmental Adaptability

▸ 256GB built-in storage (expandable up to 512GB), supporting las-format point cloud storage. Data can be directly used for engineering design without post-processing.

▸ Magnesium alloy body with IP67 dustproof and waterproof rating. Operating temperature: -20℃~+50℃; storage temperature: -40℃~+80℃, suitable for harsh field environments.

Efficient Battery Life and Easy Operation

▸ 14.4V lithium battery (47.52Wh): 180 minutes of battery life in SLAM mode, approximately 8 hours in RTK mode (with mobile network), and 2-hour fast charging.

▸ Lightweight design (only 1.8kg) with tilt compensation (0~120°), maintaining ≤2.5cm accuracy in tilted states

DUAL

OPERATING MODES

RTK

Mode

SLAM

Mode

Point Cloud absolute accuracy

≤6 cm

Outdoor

≤5 cm

Indoor

Ultra-High
Sampling Efficiency

200,000

Points/Second

Wide Measuring Range

10%

In Reflectivity Scene
Measuring Range Coverage

0.1m-40 m

80%

In Reflectivity Scene
Measuring Range Extended to

0.1m- 70m

Full Constellation & Full Frequency Band

1408

Channels

A Multi-mode Communication Architecture

• 4G

Networks

• UHF

Radio

• Wi-Fi
• Bluetooth

HDR True-Color

Point Clouds Meet AR Navigation

Panoramic Lens

360°

All-Round Imaging

Visual Layout Camera

Multi-Dimensional Data at a Glance

1.3

Inch

Industrial-Grade HD Display

240x240

Resolution

Software

Alpha Studio

APP

SurPro6.0

Product Showcase

Front

Close-up

Visual Impact

Dual-mode

Thor's Hammer

Scene Display

Specifications

Telescope

Image	Erect
Magnification	30x
Field of view	1°30'
Minimum focus	1m
Effective aperture	50mm
Resolution	4"

Angle measurement

Angle method	Absolute encoding
Accuracy	2"
Detection method	Diameter 2 channel line array CMOS
Minimum reading	0.1“/1” selectable

Distance measurement

Measurement range
Single prism	5000m
Reflective sheet/RP60	1200m
Reflectorless	1000m
Accuracy	2mm+2x10.D
Measuring time
Precision measurement	0.5s
Fast measurement	0.35s
Tracking measurement	0.25s
Minimum reading	1mm/0.1mm optional

Other functions

Keyboard display	Double-sided keyboard
Display screen	6 lines of characters, 3.5-inch color screen, resistive touch
Buttons	Numbers/letters/symbols, button backlight
Temperature & air pressure	DC7.5V-DC12V
External power	DC7.5V-DC12V
Weight	6.0kg
Working temperature	-20℃~+50℃
Waterproof & dustproof	IP55

Physical

Materials	Magnesium alloy
Dimensions (with battery&plate)	138 mm (Ф) * 301 mm (H)
Weight	1.8 kg
Operating temperature	-20°C ~ +50°C
Storage temperature	-40°C ~ +80°C
Waterproof/Dustproof	IP67

SLAM Accuracy

Absolute accuracy (Indoor)[2]	≤ 5 cm
Absolute accuracy (RTK)[3]	≤ 6 cm
Point cloud thickness	≤ 3 cm
Relative accuracy	< 1.2 cm
Horizontal angle resolution	≤ 0.05 °

Power

Battery	Li-ion battery, 7.4V/3200mAh
Working hours	Working hours

Compensator

Type	Integrat±6'ed dual-axis compensator
Compensation range	±6'

Data storage

Memory	30000 points
Extension	USB-HOST
Data transmission	Type-C/RS232C/USB-OTG

Plummet

Type	Laser plummet
Accuracy	+1.0mm at 1.5m
Spot diameter	2.5mm at 1.5m
Brightness	Adjustable

Applications

Versatile surveying solutions for complex indoor and outdoor scenarios, delivering accurate spatial data for engineering, infrastructure, and urban projects.

Underground Utility Tunnel Surveying

Forestry Survey

Tunnel Surveying

Architectural plan and elevation surveying

Volume Calculation

Urban Renewal

Product Detail

ALPHA X Total Station

Equipped with dual-axis compensator.

LCD display with 6 lines * 20 characters.

Standard Bluetooth onboard, it can be connected

with a data collector and operated with SurPro6.0.

Specifications

Telescope	Length	156mm
	lmage	Erect
	Objective aperture	Telescope:Ф45mm(meas.dist.:Ф50mm)
	Magnification	30x
	Field of view	1°30'
	Shortest focus distance	1.0m
Angle measurement	Reading system	Absolute encoder
	Angle unit	360°/400gon/6400mil,selectable
	Display resolution	1"/5"/10"(or 0.2mgon/1mgon/2mgon)
	Accuracy* ¹	2"/5"
Distance measurement	Laser class(lEC60825-1)	Reflectorless: Class 3R
		Reflective sheet/RP60: Class 3R
		Prism: Class 1
	Measurement range(Good condition)* ²
	Reflectorless* ³	Reflectorless:1 to 1000m
		Reflective sheet/RP6: 01 to 1200m
		Single prism: 1 to 5000m
	Accuracy	Prism: 2mm+2ppm
		Reflective sheet/RP60: 2mm+2ppm
		Reflectorless: 2mm+2ppm
	Measuring time	Fine mode: 1.2s
		Tracking mode: 0.3s
		Fast mode: 0.7s
	Display resolution(m/inch selectable)	0.2mm/1mm
	Pressure input range	500hPa to1500hPa(1hPa steps)
	Temperature input range	-40°C to+60°C(1°C steps)
	Prism constant correction	-99.9mm to+99.9mm
Compensator	Range/Setting accuracy	±3'/1''
Level vial sensitivity	Plate level vial	30"/2mm
Level vial sensitivity	Circular level vial	8'/2mm
*Laser plummet(Standard) ⁴**	Accuracy	±1mm/1.5m
	Laser class	Class2/IEC60825-1
	Laser spot brightness	Adjustable
	Laser wave length	635nm
Optical plummet (Factory optional)	Accuracy	±0.8mm/1.5m
	lmage	Erect
	Magnification	3x
	Field of view	4°
	Focus range	0.5m to ∞
Power	Battery	3400mAh Li-ion Rechargeable
	Output voltage	7.4V DC
	Continuous operation time	Approx.20 hours(At +20°C)
	(Single distance measurement every 30 seconds)
	Charger	FDJ6-Li(100V/240V)
	Charging time(at +20°C)	Approx.4 hours
Application programs	Data collection/Stake out/Resection/REM/MLM
Application programs	AREA/Point to line/Z coordinate/OFF set
Others	Display	LCD，6 Lines
	CPU	32Bit
	Memory	120000 points,support SD card(Optional)
	Keyboard	Alphanumerical key board, both sides
	Weight(including batteries)	5.1kg
	Dimensions(WxDxH)	175x178x340mm
	Operating temperature	-20°Cto+50°C
	Storage temperature	-40°C to +70°C
	Interface	USB/RS-232C/Bluetooth(Factory Optional)
	Water and dust protection	IP55
