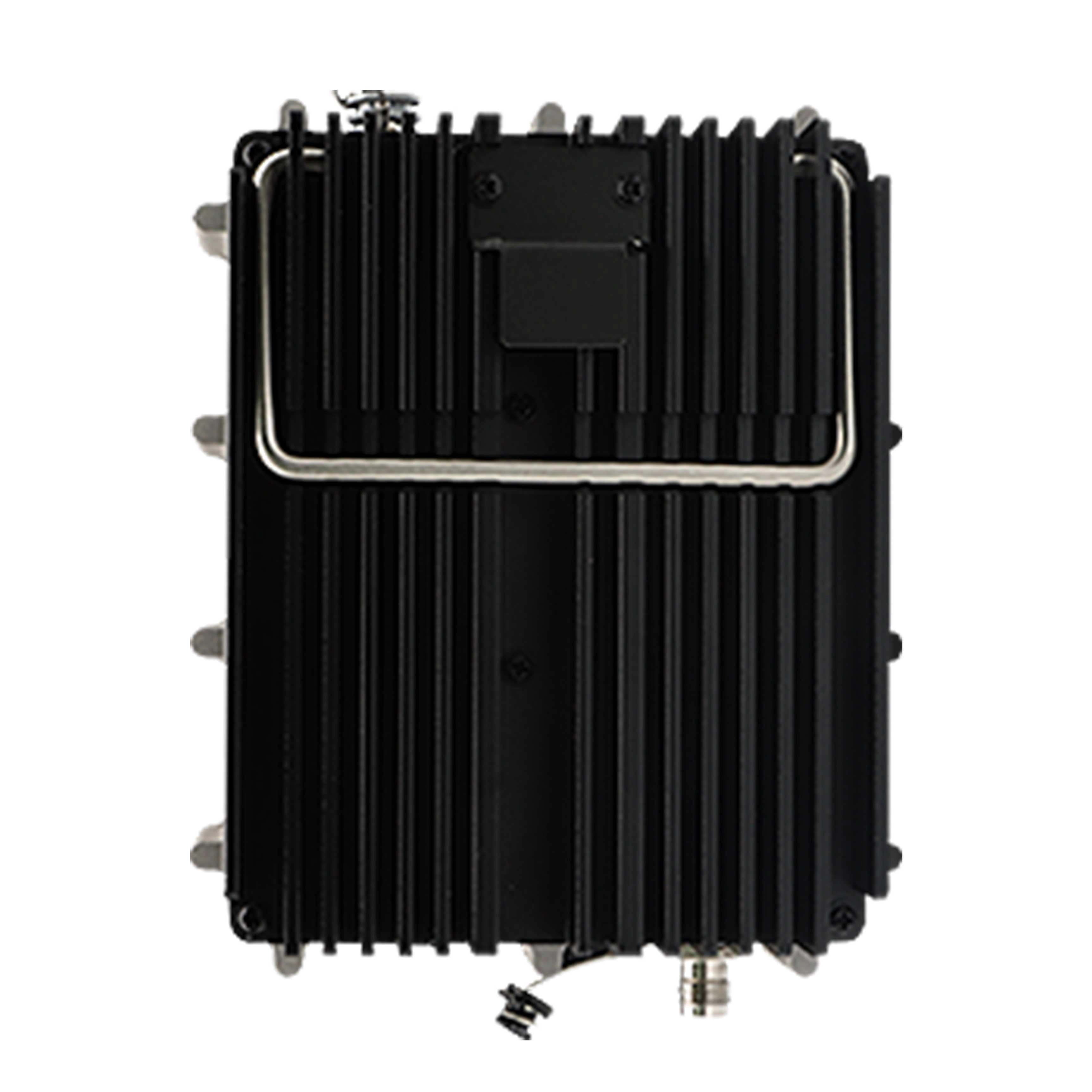

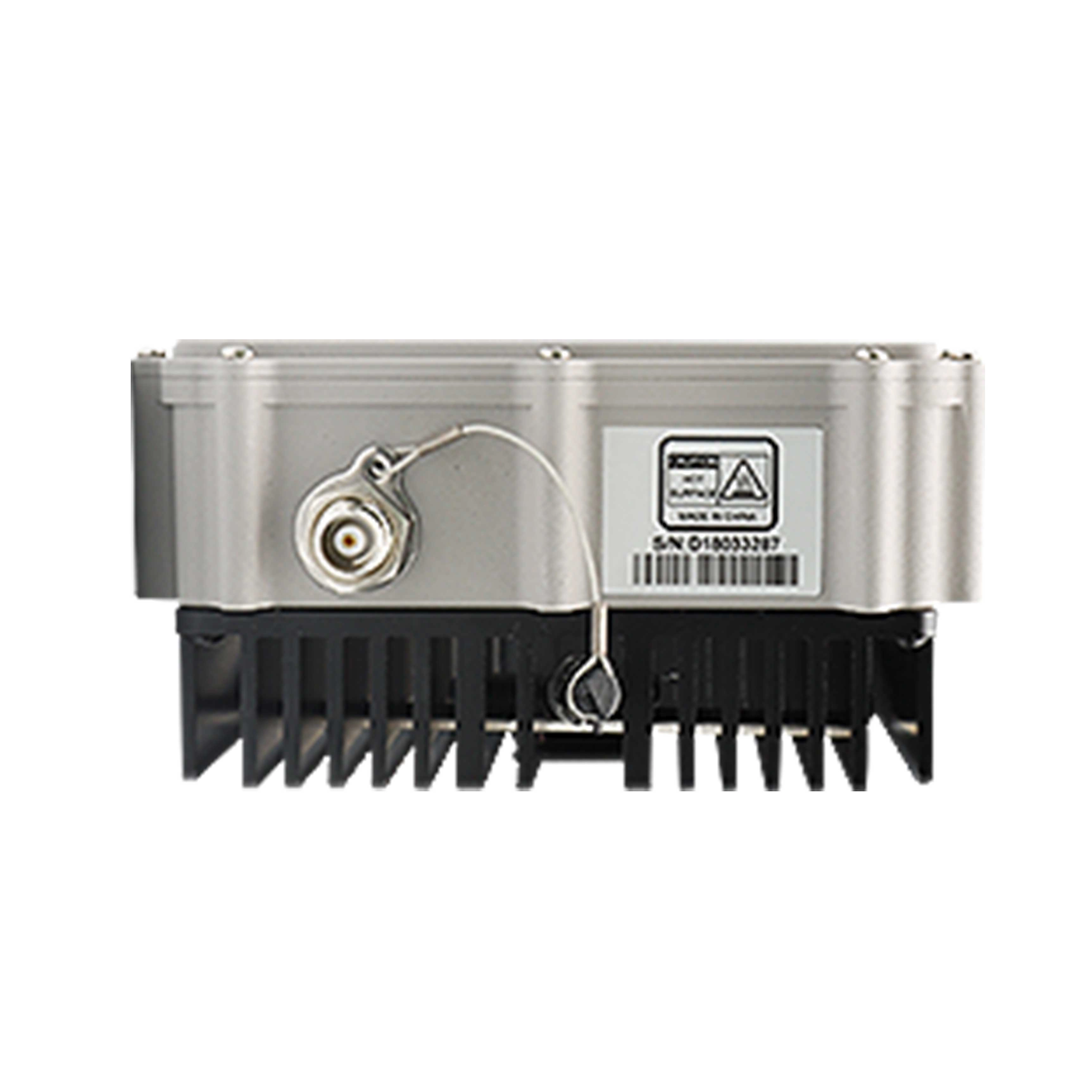

High speed high power radio Harxon HX-U202 for GNSS/RTK surveying and precise positioning
HX-DU8602T is a high speed, high power, wireless data link built to survive the rigors of GNSS/RTK surveying and precise positioning. This radio’s 25W of power maximize range, enabling you to work in difficult urban areas. The HX-DU8602T is equipped with digital tube, LED and keypad, used to indicate the current operating status, as well as for changing the operating channel and power level of the radio modem. For the most rugged and reliable long-range data link, go with the Geomatics industry’s new standard in wireless communications HX-DU8602T.
Product Detail
Available Instrumentation
-
60MHz Bandwidth Coverage 410-470MHz bandsAdvanced data link design for high performance over entire band. -
Multi-function user interfaceIt was designed for easy mobile use in demanding field conditions. -
Configurable Transmit PowerSupport for 5W, 25W power switching. -
Software-Derived Channel BandwidthCompatible with both 12.5 and 25 kHz radios.
Specifications
| General Specification | Frequency Range | 410-470MHZ |
| Operating mode | Simplex | |
| Channel spacing | 25KHz,12.5KHZ | |
| Modulation type | GMSK | |
| Operation voltage | 9-16V | |
| Power dissipation(Typical) | High power level: 75W@Dc 12V | |
| Low power level: 35W@DC 12V | ||
| Standby: 1.5W@DC 12V | ||
| Frequency stability | ≤+1.0ppm | |
| Structural Specification | Size | 186x140x73mm |
| Weight | About 1.5kg | |
| Temperature( operation) | -30°C~-+65°C | |
| Temperature (storage) | -55℃~+75°C | |
| Antenna port | TNC,female | |
| Antenna impedance | 50ohm | |
| Data interface | LEMO 5Pin | |
| Water proof level | IP67 | |
| Transmitter | RF output power | High level: 43 5+0.5dBm@ DC 12V |
| Low level: 37+1dBm@DC 12V | ||
| Power stability | +1dB | |
| Harmonics | <-30dBm | |
| Modem | Air baud rate | 9600bps、19200bps |
| Modulation type | GMSK | |
| Serial port baud rate | 9600bps、19200bps、38400bps、57600bps、115200bps |
