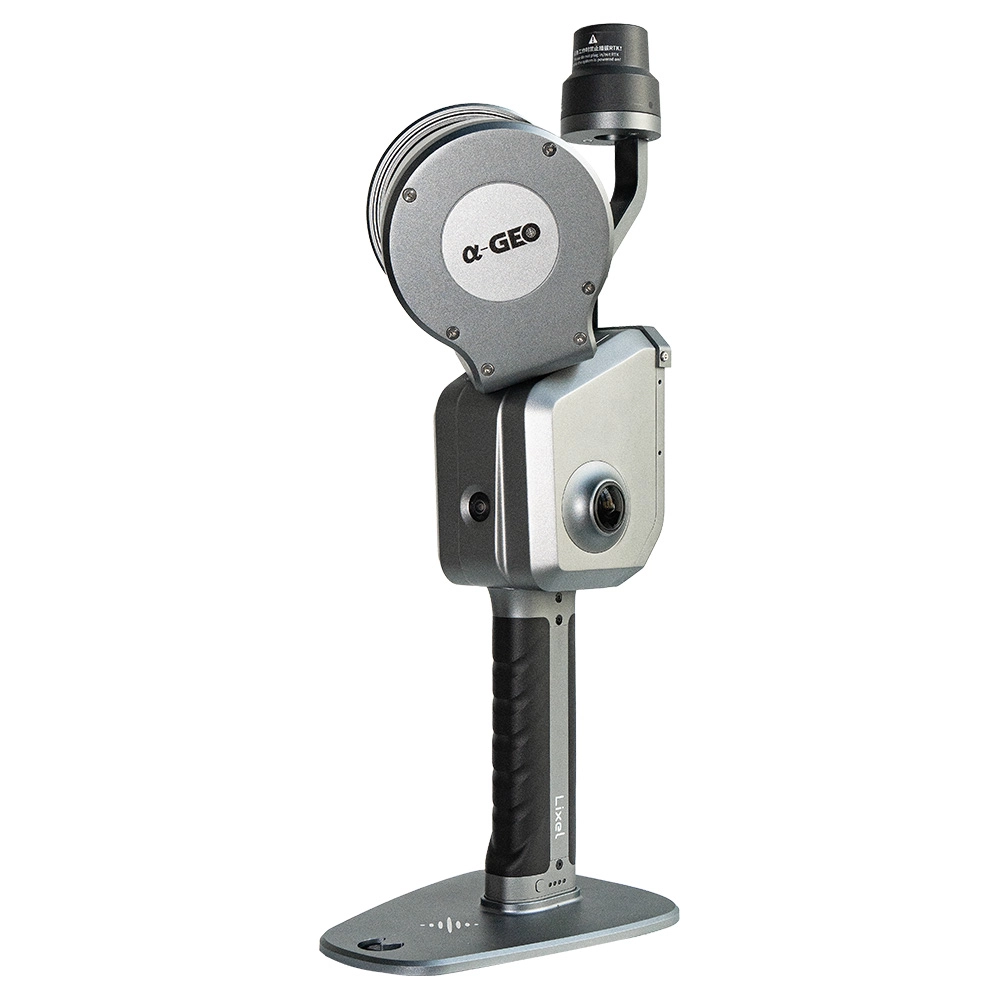

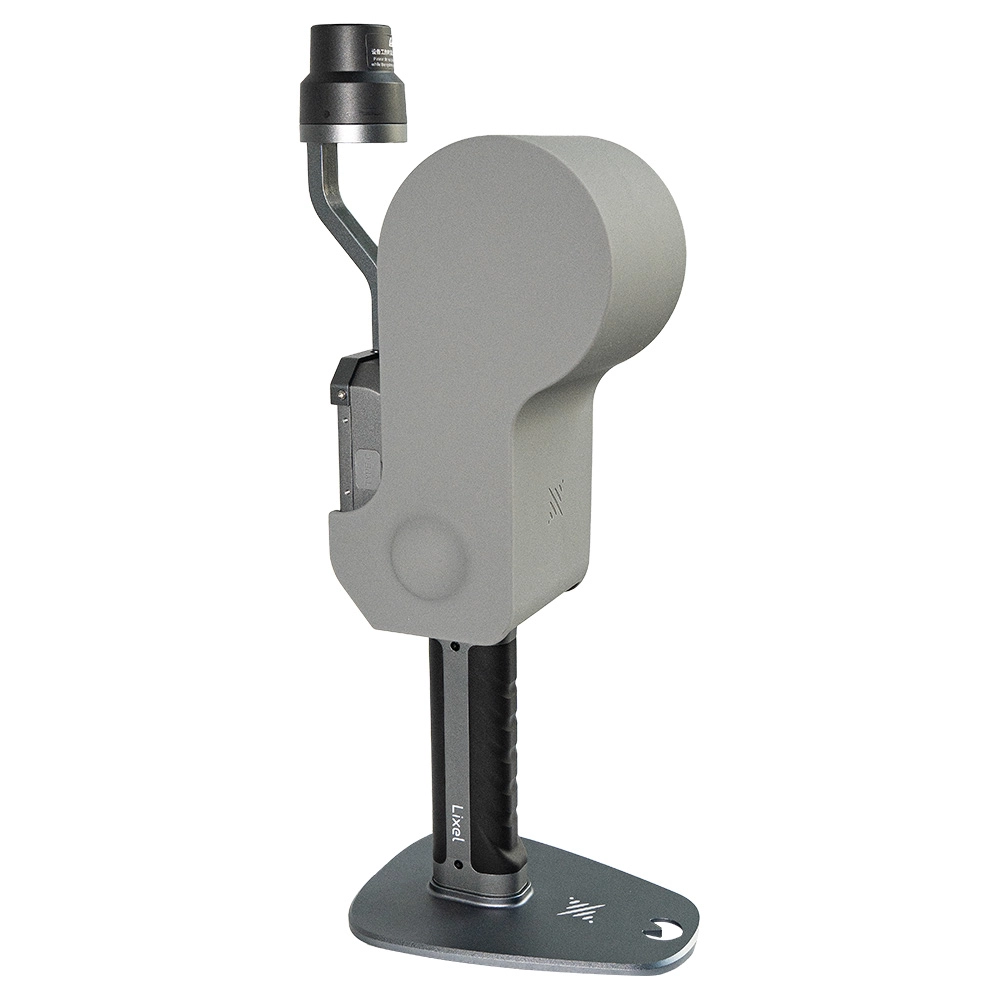

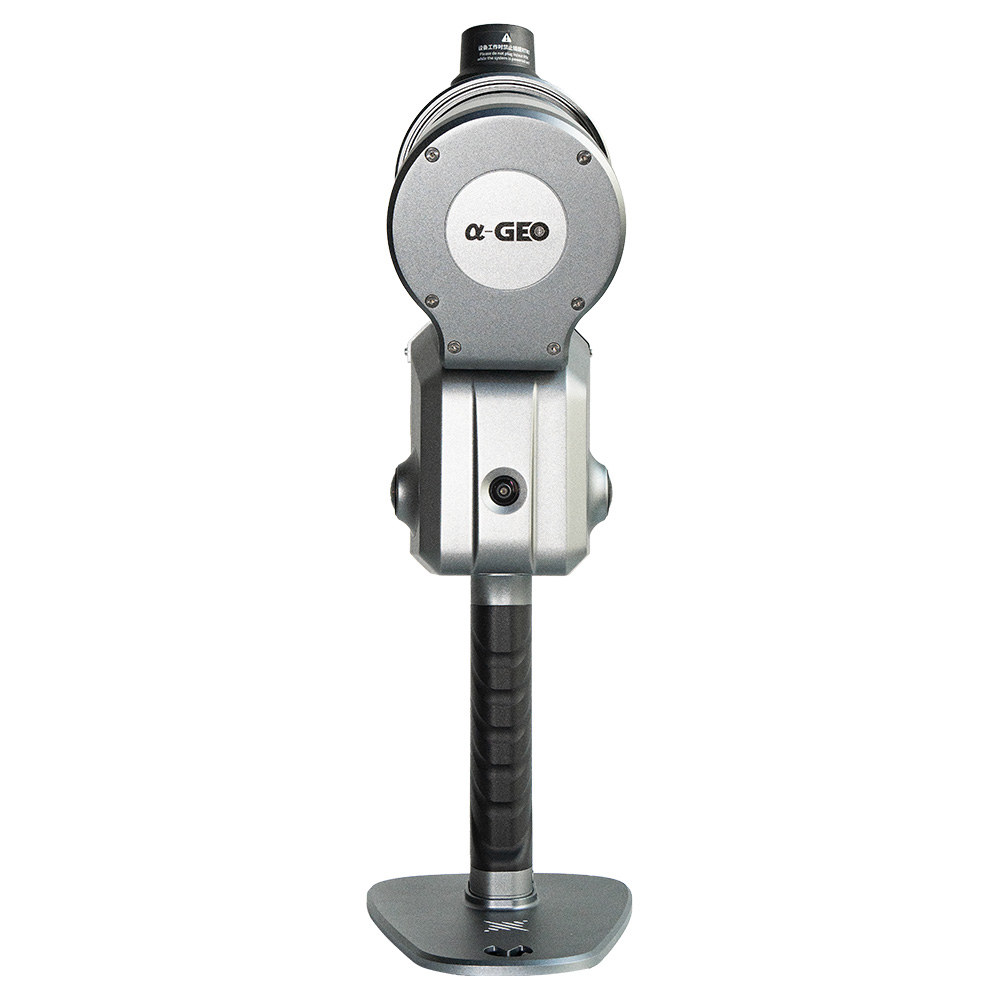

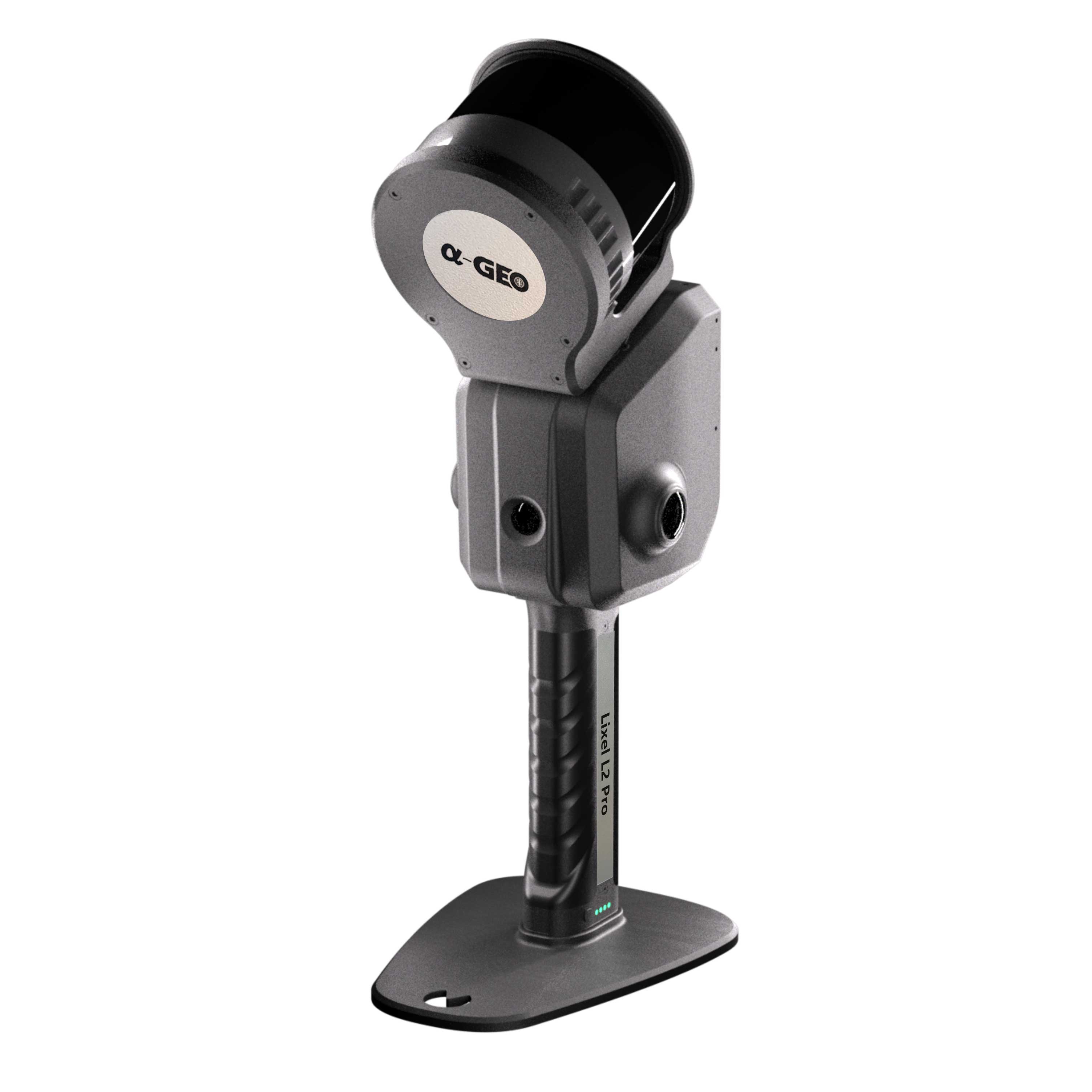

Real-time scanning and modeling device Lixel L2 Pro

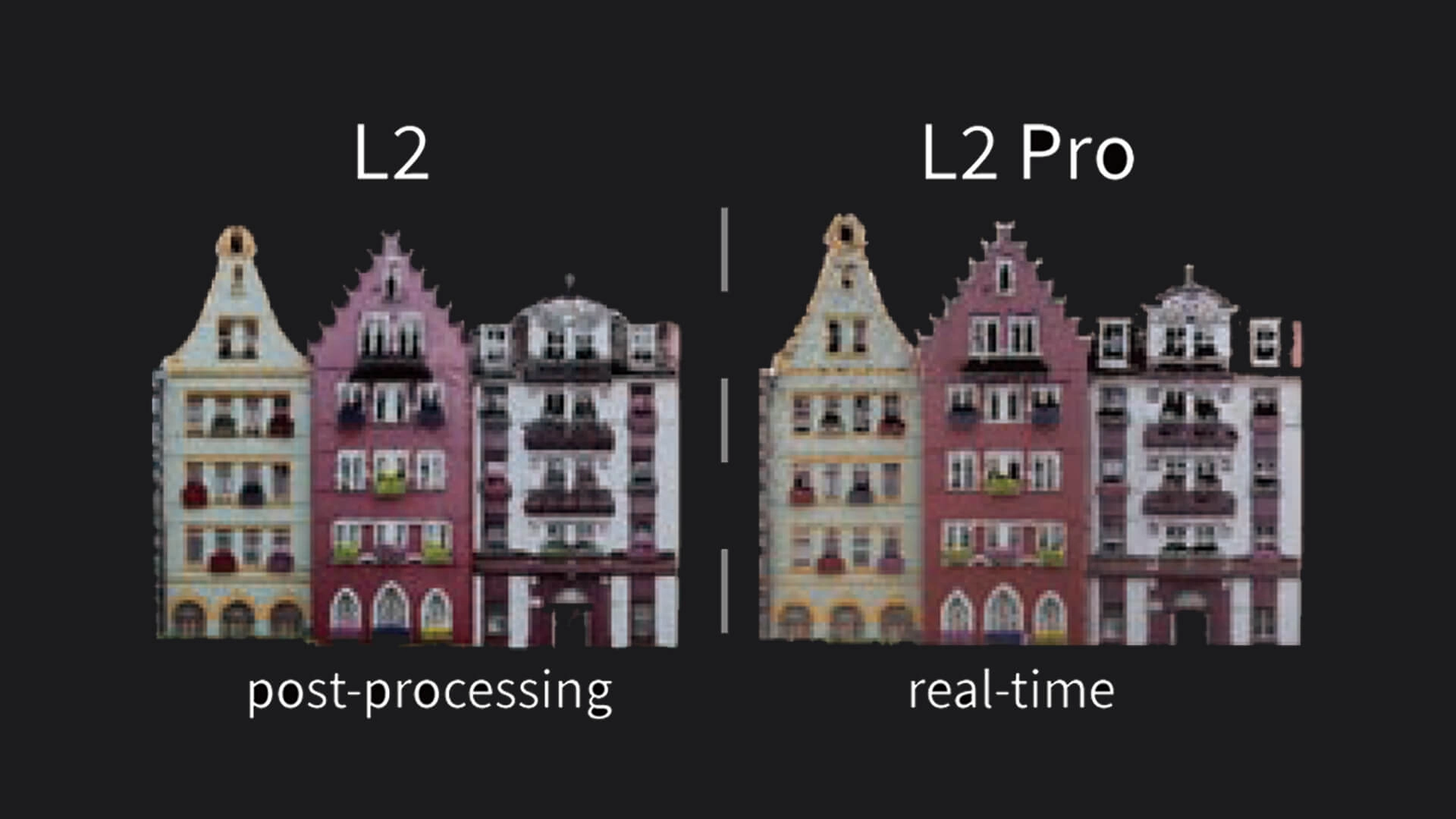

The Lixel L2 Pro combines LiDAR, visual, and IMU modules with AI, delivering real-time point cloud data that rivals post-processed quality, ushering in the "zero post-processing era" for SLAM devices.
Inquire Now
1744184010_D8iW1kyPLL.pdf
Product Detail

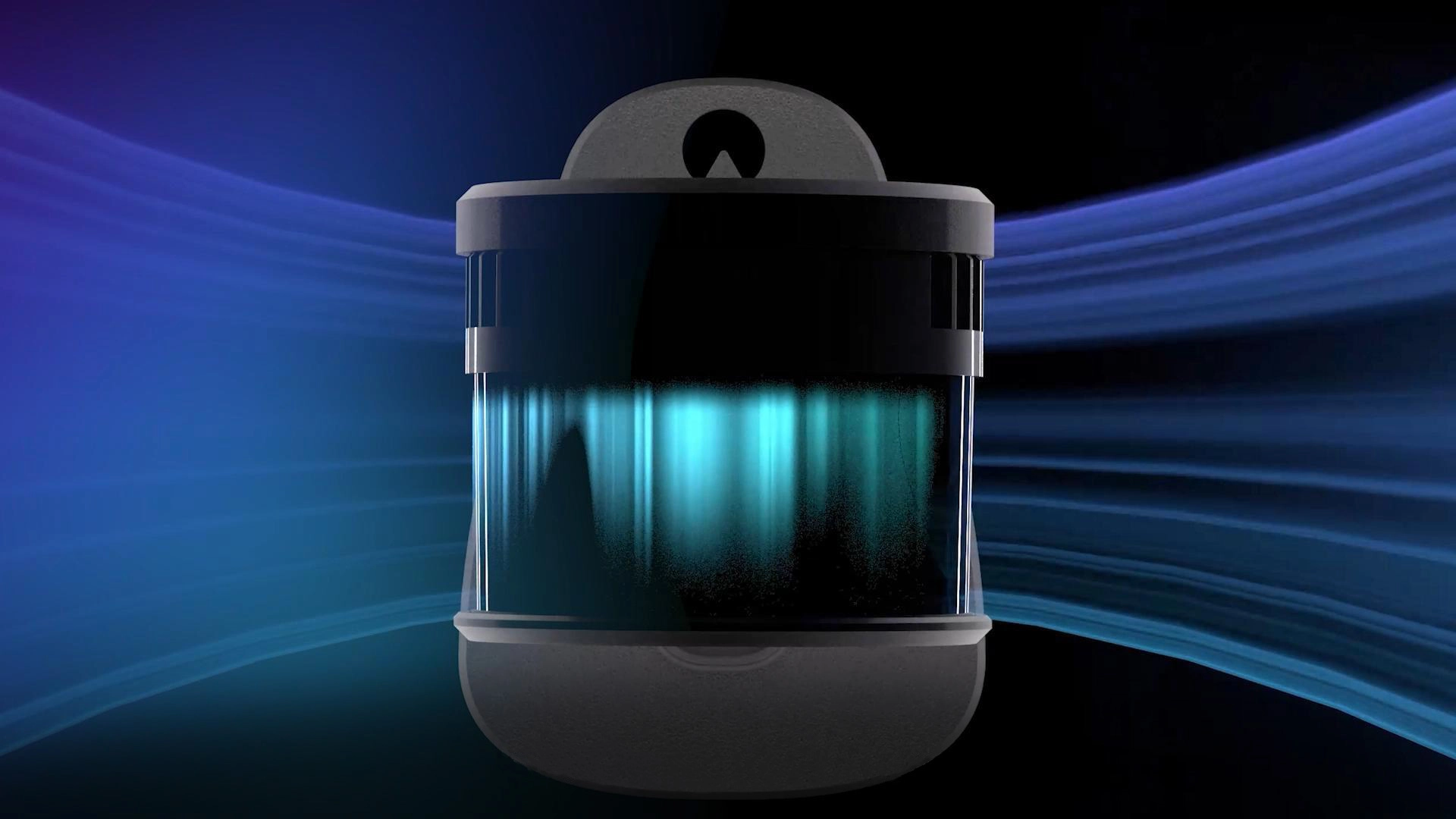

Rotating LiDAR

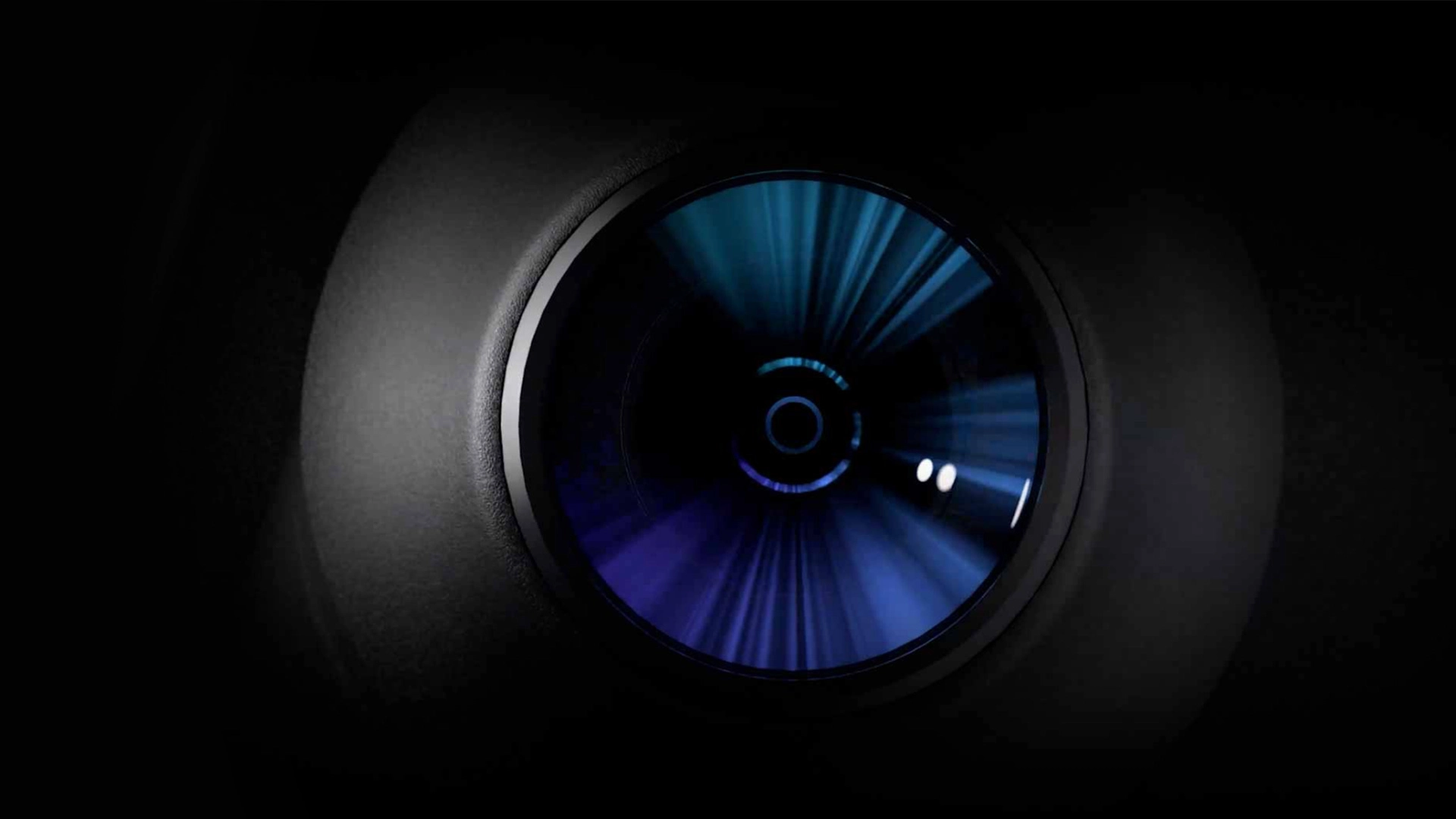

Dual 48MP panoramic vision

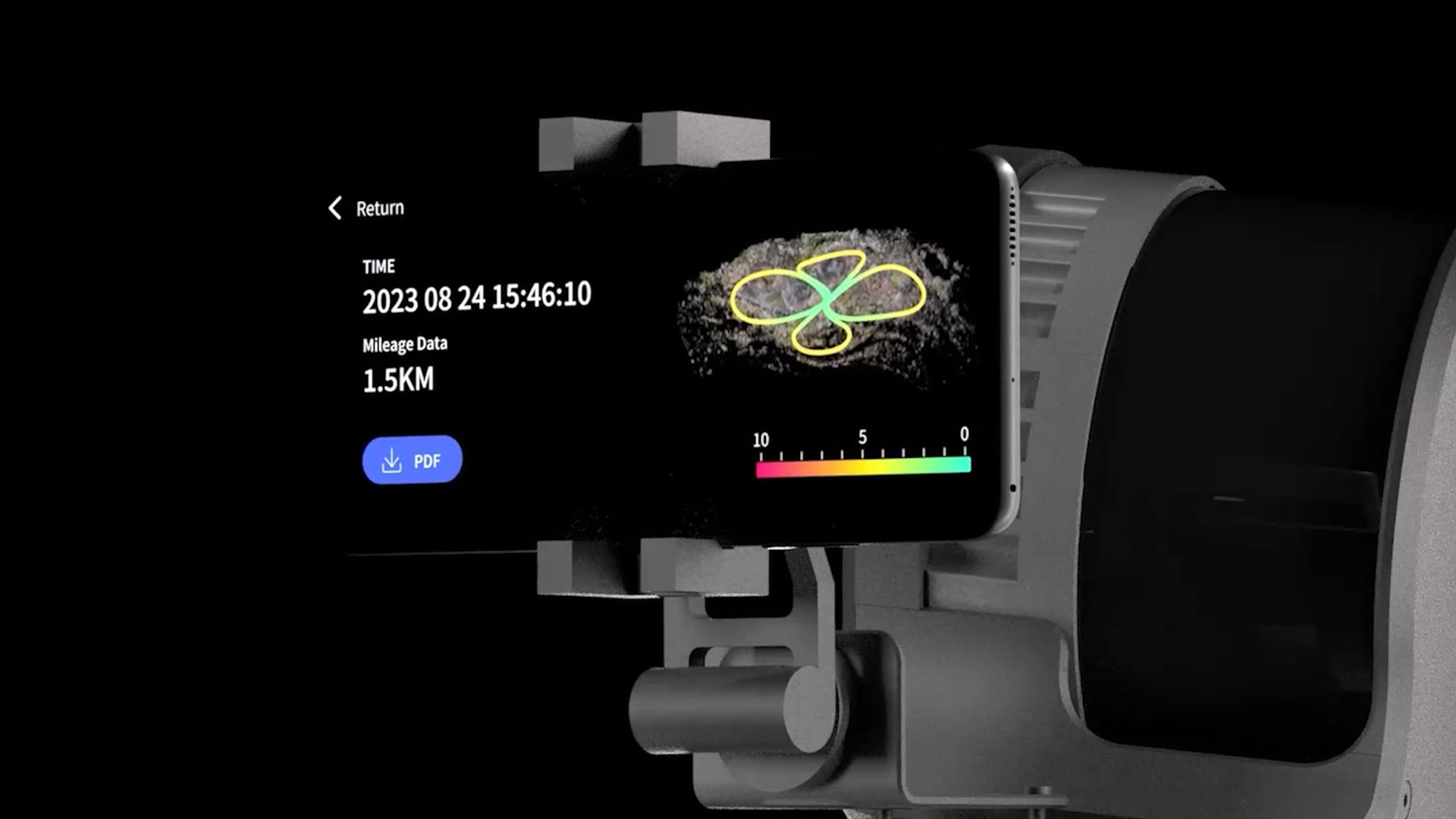

Direct phone connection

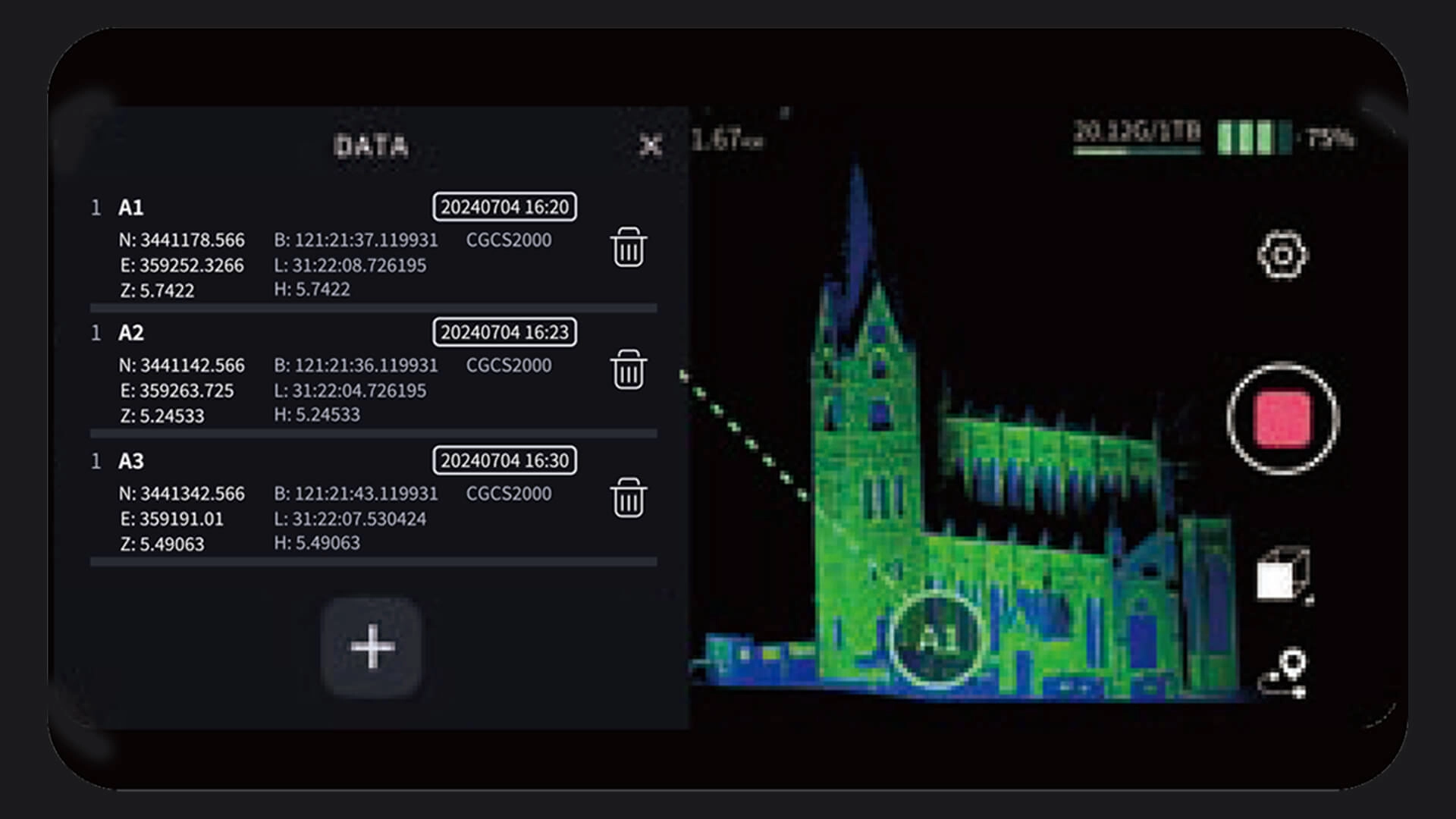

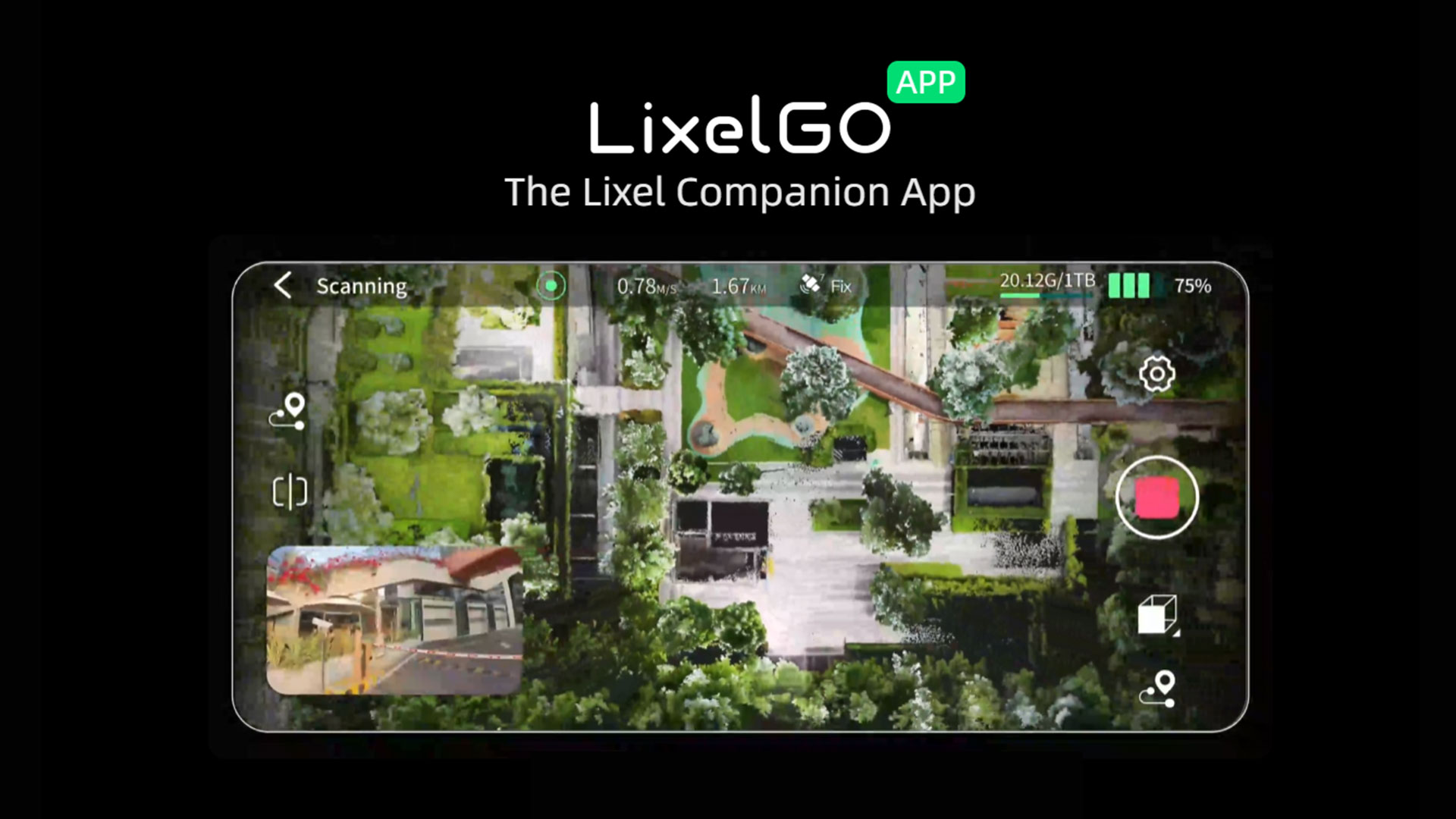

LixelGO APP

The Lixel companion App

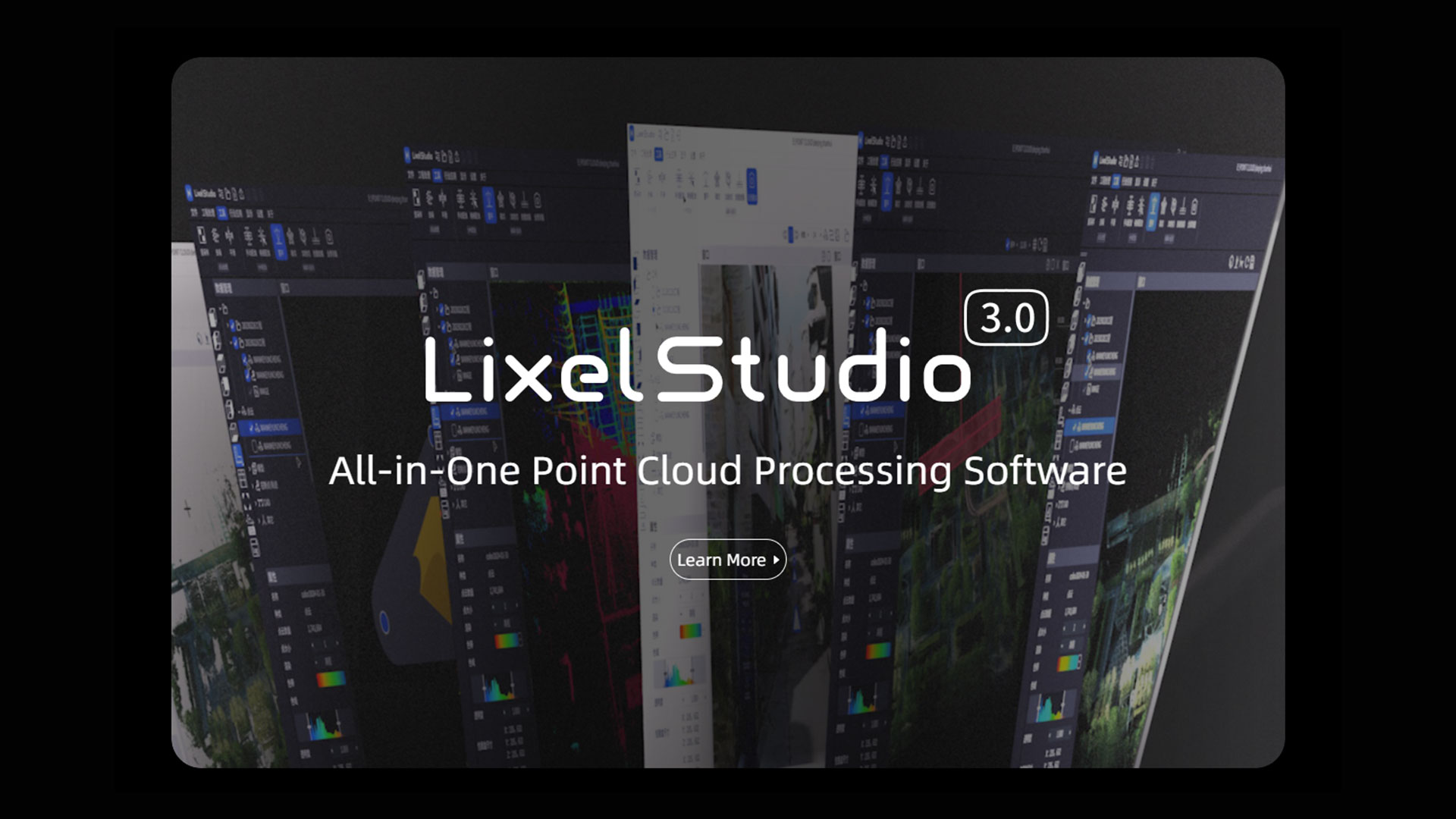

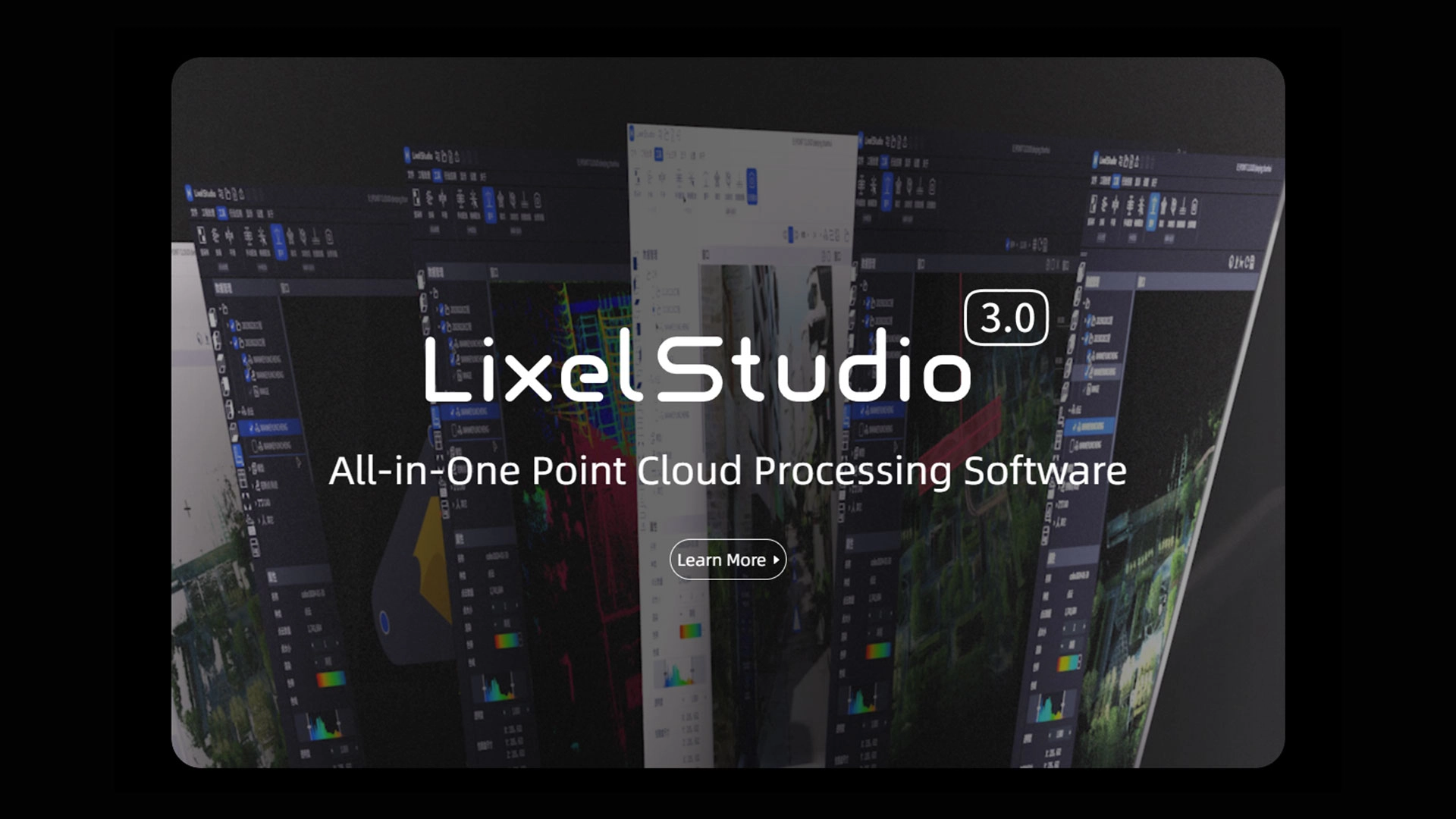

Lixel Studio3.0

All-in-One Point Cloud Processing Software

Specifications

System Parameters
Weight 1.7kg(without battery)
Size 1 180mm×130mm×400mm
Outer Casing Industrial-grade Aluminium
Power Consumption <30W
Interfaces USB 3.1 Gen2
Storage 1T SSD
Continuous Operation Time 90min
Wireless Supports WiFi, Bluetooth:802.11a/b/g/n/ac, 2.4G Wifi 2412-2472MHz , 5G2 Wifi 5180-   5240MHz , 5G8 Wifi 5745-5825MHz

Environment Operating Temperature -20°C~50°C
-4°F-122°F
IP Rating IP54
Functions Visual Positioning Supported
Real-time RGB Supported
Real-time RTK Fusion Supported
Output Point Cloud Formats .las .ply
Image Formats .jpg


Accessories
Backpack with Stabilizing Arm Dimensions: 60cmx60cmx15cm
Weight: 2.5kG
Backpack with Padding Dimensions: 55cmx35cmx25cm
Weight: 2.7KG
Shipping case Dimension: 42cm*34cm*18cm
Weight with System: 6.6kg
2m Extension Pole Supported
Mobile Phone Mount Supported
Control Point Plate Supported
Accuracy Absolute Vertical/Horizontal Accuracy (RMSE) [2] 3cm
Real -time Relative Accuracy (RMSE) [3] 2cm
Processed Relativet Accuracy (RMSE) [3] 1cm
Repeat Accuracy(RMSE) [4] 2cm

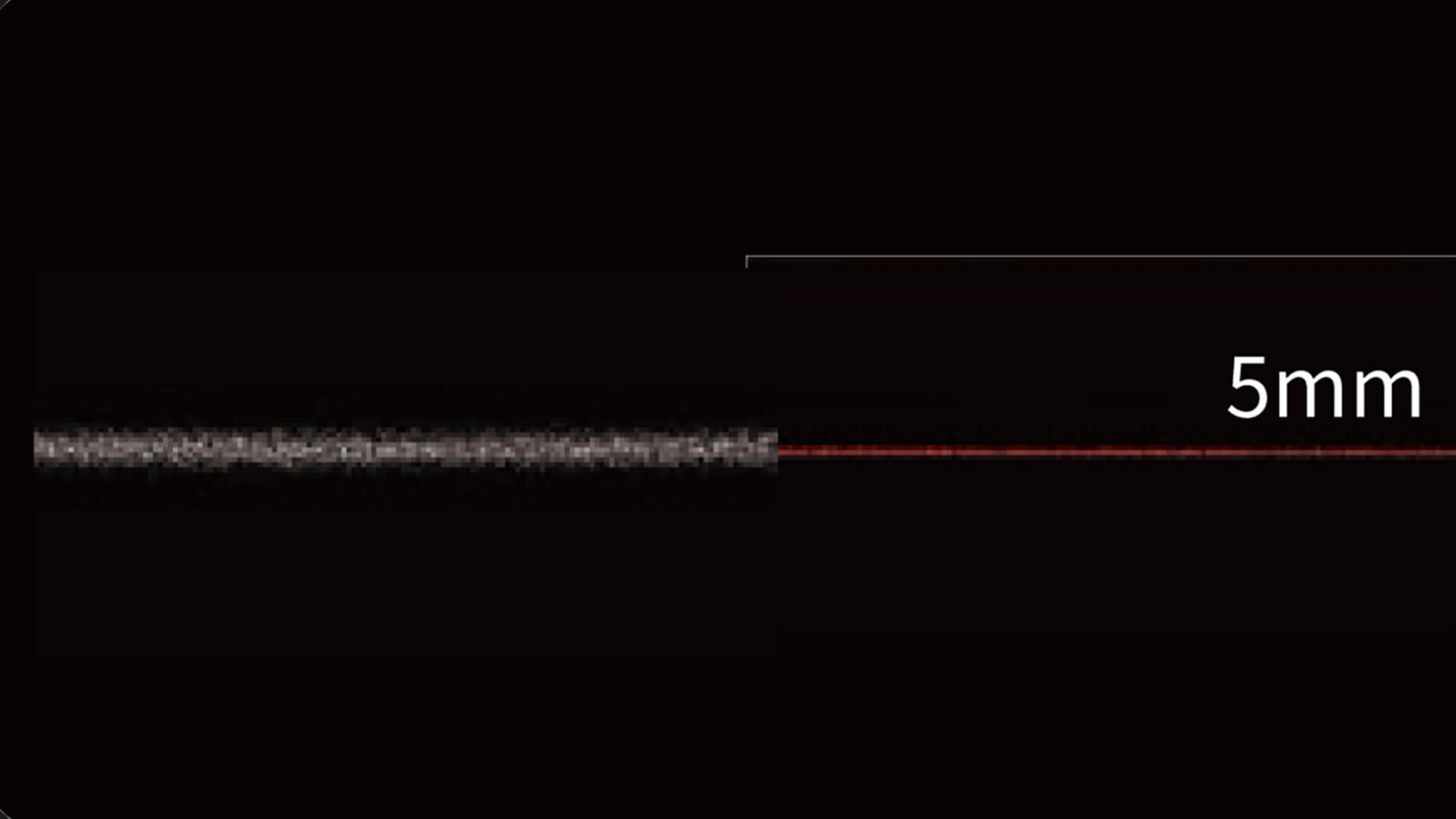

Point Cloud Thickness [5] 0.5cm
LixelUp Sample TM Supported
LiDAR Operating Range Operating Range
0.5m~300m
LiDAR Sensor Class 1/905nm
Sensor FOV 360°x270°
Scanning Frequency 320,000 points/s
640,000 points/s
Camera for Panoramic Images Resolution 2x48 Megapixels
Focal Length 2mm
Aperture F/2.0
CMOS 1/2”
Shutter Rolling shutter
FOV 190°x190°
Camera for Visual Positioning Resolution 1x1MP
Shutter Global shutter
FOV 190°x119°
Battery Voltage 14.4V
Capacity 46.8wh

Hot Tags

Get a free quote

If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.

Please enter your name not exceed 100 characters
The email format is not correct or exceed 100 characters, Please reenter!
Please enter a valid phone number!
Please enter your field_1432 not exceed 100 characters
Please enter your content not exceed 3000 characters

How can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Need help?

New Products

High precision monitoring COLIBRI II with dual-axis tilt function
Read More
High precision monitoring COLIBRI II with dual-axis tilt function
Handheld RTK data collector S60III PRO collection terminal
Read More
Handheld RTK data collector S60III PRO collection terminal
Rugged RTK data collector S60III for field measurements and mapping operations
Read More
Rugged RTK data collector S60III for field measurements and mapping operations
High speed high power radio Harxon HX-U202 for GNSS/RTK surveying and precise positioning
Read More
High speed high power radio Harxon HX-U202 for GNSS/RTK surveying and precise positioning
High speed radio Harxon HX-DU8616D for GNSS/RTK surveying and precise positioning
Read More
High speed radio Harxon HX-DU8616D for GNSS/RTK surveying and precise positioning
Alpha D200 Ground Penetrating Radar
Read More
Alpha D200 Ground Penetrating Radar

Related Products

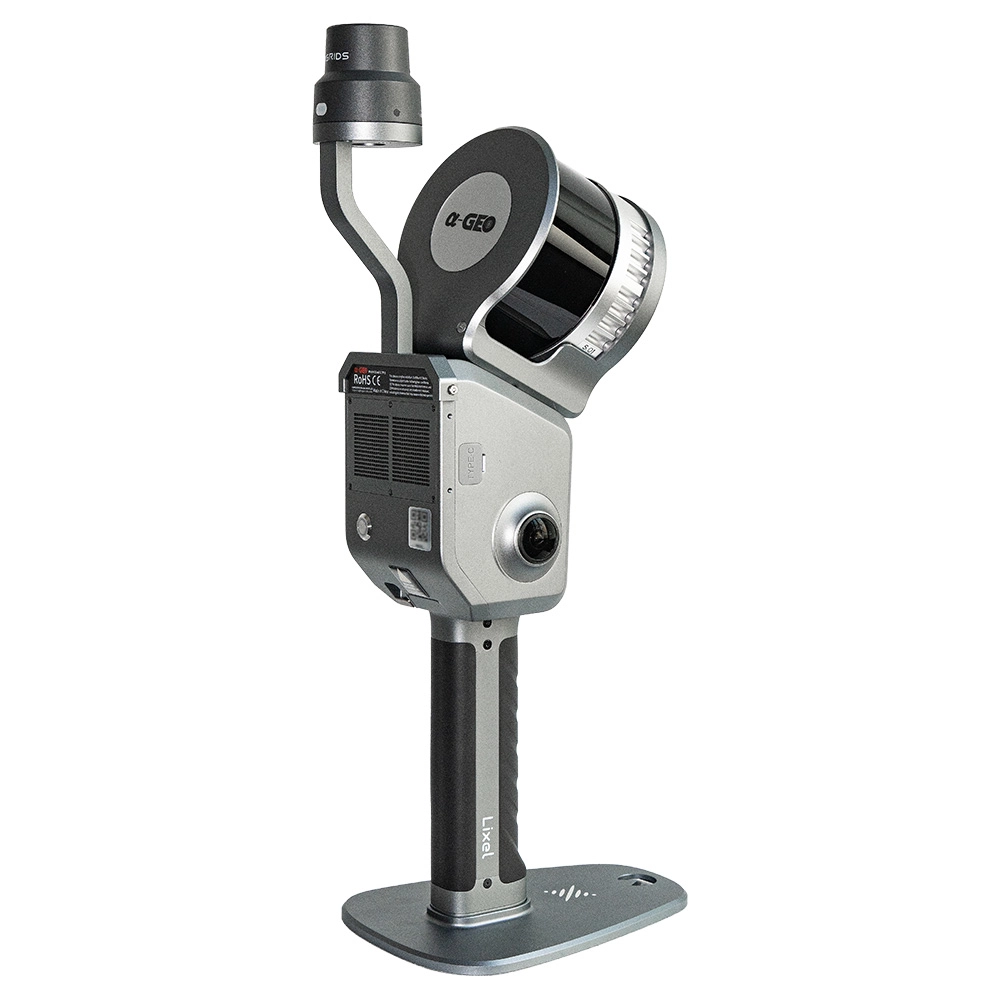

Handheld real-time 3D reconstruction laser scanner Lixel L2
