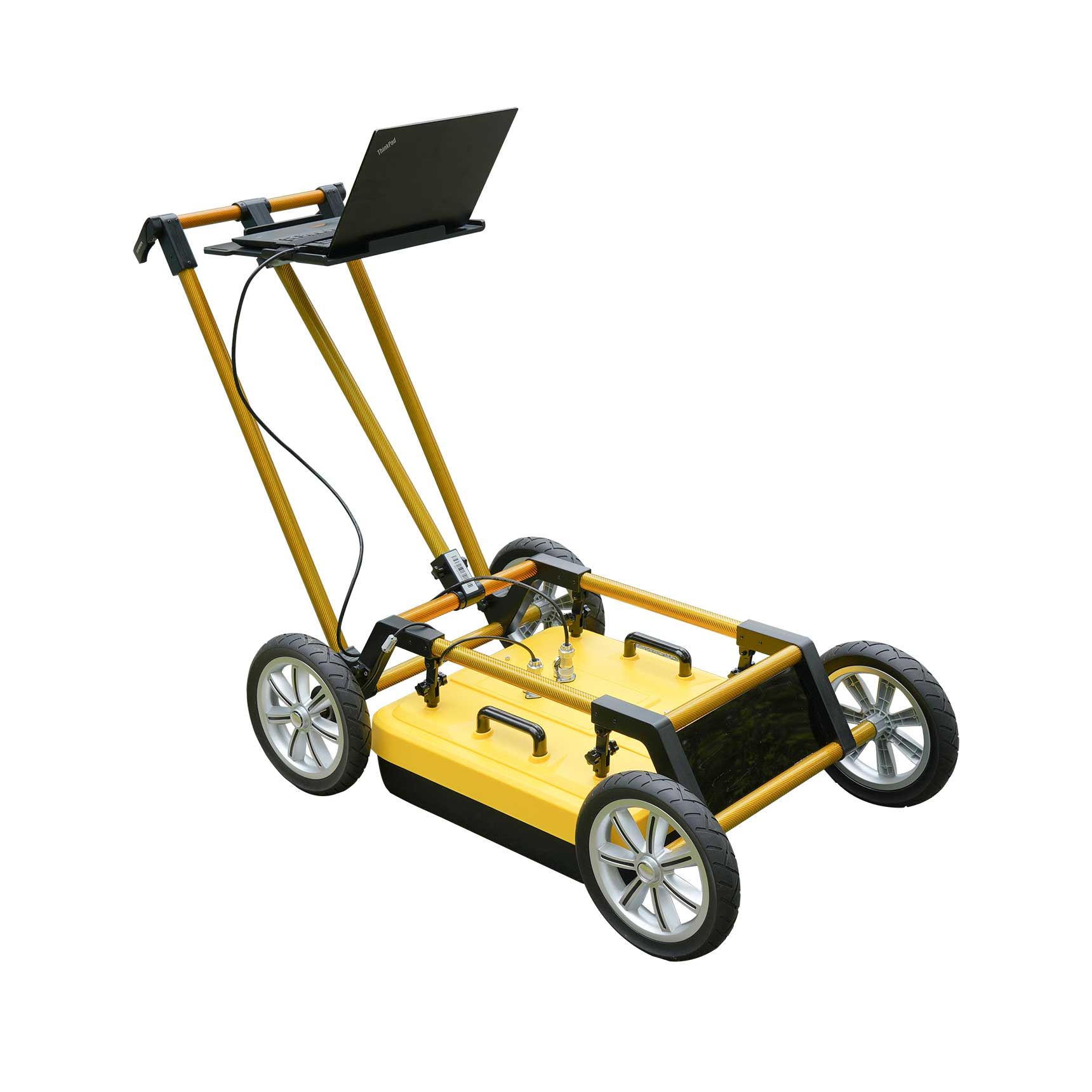

Alpha D200 Ground Penetrating Radar
Alpha D200 Ground Penetrating Radar

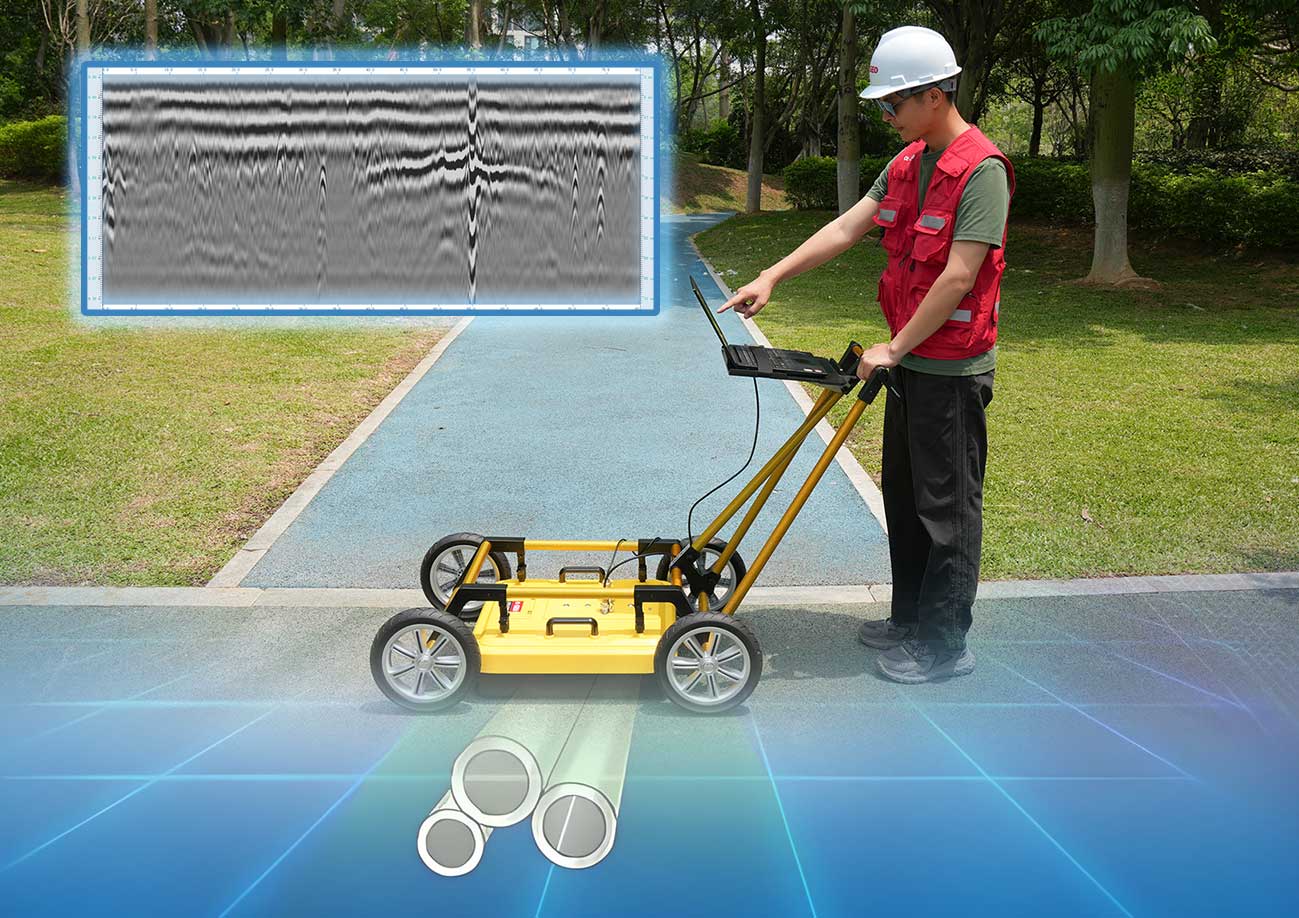

• Gas pipelines
• Water supply lines
• Cables
• Underground voids
Inquire Now
1748510776_JPjWQnZe7d.pdf
Product Detail
Key Features
- Built-in 200MHz antenna
- Compact, lightweight, low-power integrated design
- Compatible with Windows and other platforms
- Real-time acquisition software (SDI-GPR) and data processing tools
- User-friendly interface for quick adoption
- Large-capacity hard drive storage for easy data preservation
Software Functions
- Reference subtraction, filtering, background processing, auto-gain
- Gain adjustment
- pipeline identification
- Report generation, printing, and export
Technical Specifications
Simple, durable, and easy to operate, it is perfectly suited for mobile working environments in the field.
Technical Specifications
- The ALPHA D200 supports both wired (Gigabit Ethernet) and wireless (dual-band Wi-Fi) connectivity for data transfer and real-time control.

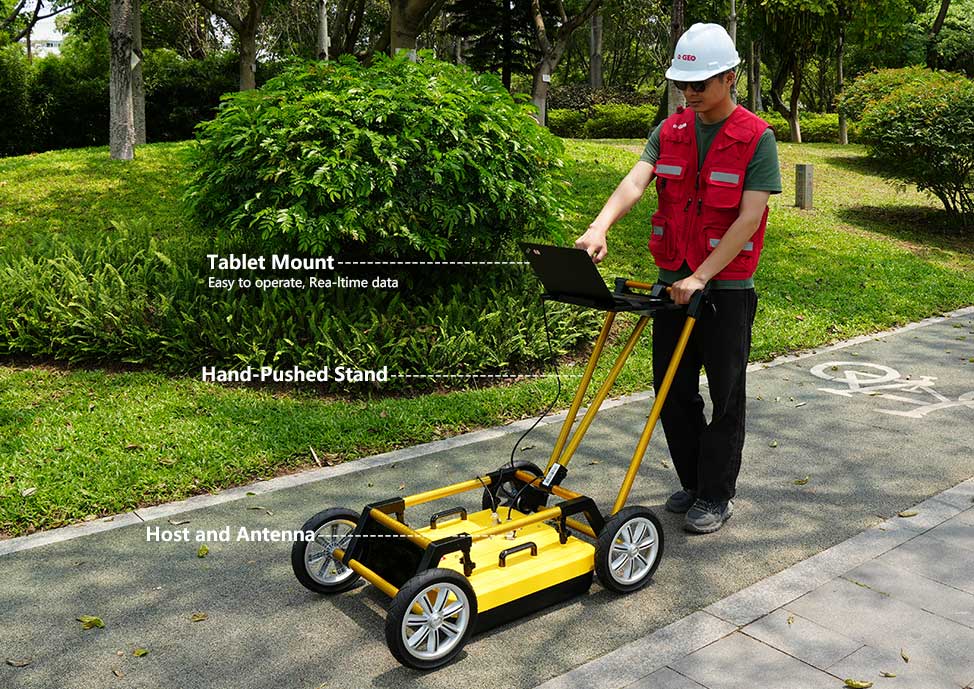

- Alpha D200 features an industry-leading integrated design of host and antenna, offering compact size, lightweight construction, and low power consumption.

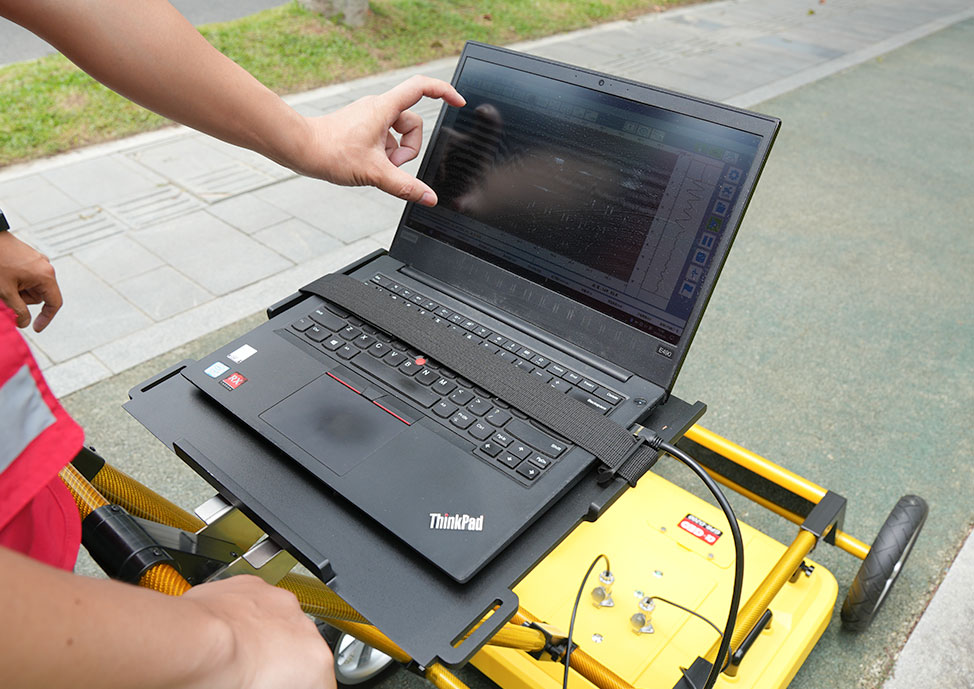

- Its streamlined software interface ensures user-friendly operation with quick onboarding capabilities.
Specifications
| Adjustable sampling frequency | 50K–800kHz |
| Selectable sampling points | 256 to 32,768 |
| Time window range | 5ns–1μs |
| Resolution | <2ps |
| Signal-to-noise ratio | 160dB |
| Dynamic range | 168dB |
| Display modes | Pseudocolor, stacked waveforms, grayscale |
| Measurement modes | Point-by-point, distance-triggered, continuous |
| Antenna-Host Technical Parameters | |
| Antenna Frequency | 200MHz center frequency |
| Detection Depth | 0–8m (under ideal conditions) |
| Dimensions | 55×51×16cm |
| Weight | 9.3kg |
| Applications | Metal/non-metal pipelines, underground voids, etc. |
| Battery Run Time | ≥15 hours |
| Power Consumption | <6W |
| Operating Temp | -30°C to +70°C |
| Storage Temp | -40°C to +80°C |
| Battery | Built-in rechargeable Li-ion, 14.8V |
| Max. Ground Clearance | 2cm during operation (adapts to terrain) |
| Data Transfer | Dual wireless/wired network support |
| Temp. Compensation | Built-in to minimize environmental impact |
| Interference Shielding | Shielded antenna design reduces human/environmental noise |
| Cart Design | Ergonomically balanced for easy operation |
Note: Specifications may vary with product upgrades. Refer to the actual product for details.
Warranty: 1-year coverage for non-human-induced damage.
